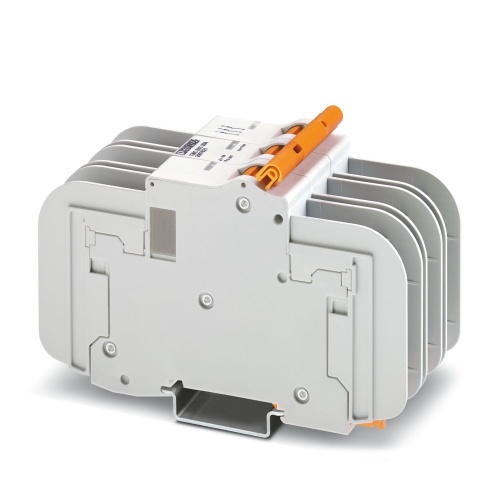

Phoenix Contact 2907623 Miniature Circuit Breaker TMC 83C 25A
Normally In Stock
Code: 23645
Phoenix Contact 2907623 Breaker TMC 83C 25A
Condition: New
Usually ships Same Day or Next Day$75.32
Sale Price
$62.77
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2907623 The Thermal-magnetic Miniature Circuit Breaker is designed to provide branch circuit protection against overloads and features a breaking capacity of up to 10 kiloamperes, with a trip characteristic class C indicating its sensitivity to overload conditions, it has a mounting type compatible with NS35/ standard and can handle rated currents of up to 25 amperes.
Specifications
Breaker Type
Supplementary Breaker
Breaker Mount Type
Din Rail
Breaker Mechanism Type
Toggle
Breaker Switching Type
Thermomagnetic
Breaker Amperage Rating
25 Amp
Breaker UL Rating
UL 489 Listed
Breaker Trip Speed
Normal Trip
Breaker Protection For
All Application Types
Breaker Overcurrent Protection Rating
C Curve 7-10 X Amp Rating
Breaker Number of Poles
Three Pole
Breaker Unit
Complete Unit
Breaker Voltage Rating
240 VAC
Manufacturer
Phoenix Contact
Component
Thermomagnetic Device Circuit Breaker
Features
Can be used worldwide due to international approvals
Suitable for various grid types, as it is available in 1-, 2-, 3-pos. versions
Ideally coordinated protection due to various tripping characteristics and a wide selection of nominal currents
Reduced inventory because of suitability for AC and DC applications
Optional accessories enable remote control and monitoring
Downloads
Phoenix 2907623 CAD data International.stpPhoenix 2907623 CAD data International.wrlPhoenix 2907623 Data Sheet English.pdfPhoenix 2907623 Data Sheet.pdfPhoenix 2907623 Flyer English.pdfPhoenix 2907623 Manufacturers declaration International.pdfPhoenix 2907623 Spec Sheet.pdfPhoenix 2907623 Tender Text English.zipPhoenix 2907623 User Manual.pdfPhoenix 2907623 Various English.pdf
