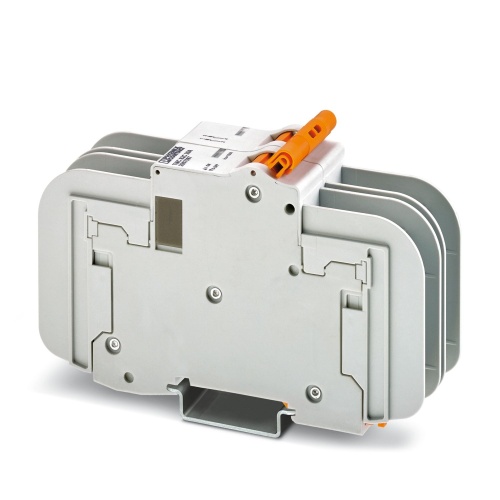

Phoenix Contact 2907673 Miniature Circuit Breaker TMC 82D 63A
Normally In Stock
Code: 23613
Phoenix Contact 2907673 Breaker TMC 82D 63A
Condition: New
Usually ships Same Day or Next Day$50.22
Sale Price
$41.85
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2907673 The Thermal-magnetic Miniature Circuit Breaker is designed to provide branch circuit protection, particularly against overload, and features a breaking capacity of 10 kA. Its tripping characteristic is set at D, while it is mounted using an NS 35/ configuration, with a rated current of 63 A.
Specifications
Breaker Type
Supplementary Breaker
Breaker Mount Type
Din Rail
Breaker Mechanism Type
Toggle
Breaker Switching Type
Thermomagnetic
Breaker Amperage Rating
63 Amp
Breaker UL Rating
UL 489 Listed
Breaker Number of Poles
Two Pole
Breaker Trip Speed
Slow Trip
Breaker Protection For
High Inrush Current

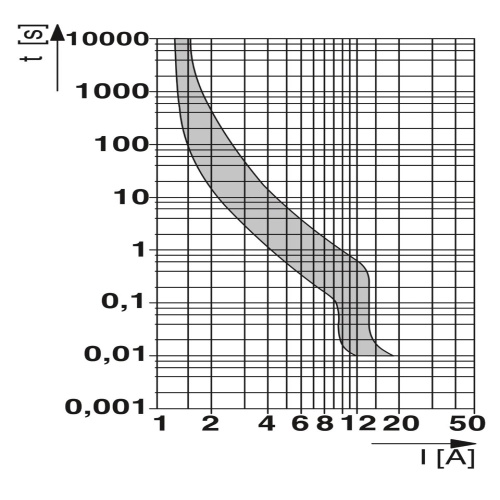

Breaker Overcurrent Protection Rating
D Curve 10-14 X Amp Rating
Breaker Unit
Complete Unit
Breaker Voltage Rating
240 VAC
Manufacturer
Phoenix Contact
Component
Thermomagnetic Device Circuit Breaker
Features
Can be used worldwide due to international approvals
Suitable for various grid types, as it is available in 1-, 2-, 3-pos. versions
Ideally coordinated protection due to various tripping characteristics and a wide selection of nominal currents
Reduced inventory because of suitability for AC and DC applications
Optional accessories enable remote control and monitoring
Downloads
Phoenix 2907673 CAD data International.stpPhoenix 2907673 CAD data International.wrlPhoenix 2907673 Data Sheet English.pdfPhoenix 2907673 Data Sheet.pdfPhoenix 2907673 Flyer English.pdfPhoenix 2907673 Manufacturers declaration International.pdfPhoenix 2907673 Spec Sheet.pdfPhoenix 2907673 Tender Text English.zipPhoenix 2907673 User Manual.pdfPhoenix 2907673 Various English.pdf
