Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

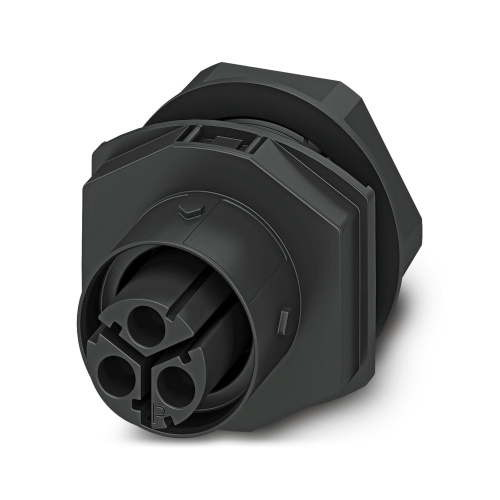

Phoenix Contact 1088684 Panel feed-through IPD W 3P2,5 F M25 BK
Normally In Stock
Code: 236082
Phoenix Contact 1088684 - Panel feed-through - 3 Positions - Cu - 20 AWG - 20 Amp - 500 V - IP66 - Push-In Connection - Snap-In Locking
Condition: New
Usually ships Same Day or Next Day$13.20
Sale Price
$11.00
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1088684 The panel feed-through for connectors within the IPD product family features a push-in connection method with multiple positions available from 2+PE to M25, utilizing a socket that accommodates wires of up to 2.5 mm2 and operates at 500 V with a maximum current rating of 20 A, while also being black in color and coded with the letter "P".
Specifications
Component
Panel
Connector Amperage
20 Amp
Connector Material
Cu
Connector protection
IP66
Manufacturer
Phoenix Contact
Number of Positions
3
Sub Component
Panel Feed-Through
Connector Voltage
500 Volt
Features
Easy distribution of power, as components are plugged directly
Simple, time-saving wiring in the field with Push-Lock connection
Reliable installation in harsh environments with IP66, IP68, and IP69K throughout the entire system
Secure, tool-free locking even in particularly difficult installation situations
Fast commissioning with preassembled cable assemblies
Code: 236082
Phoenix Contact 1088684 Panel feed-through IPD W 3P2,5 F M25 BK
$13.20
Sale Price
$11.00
