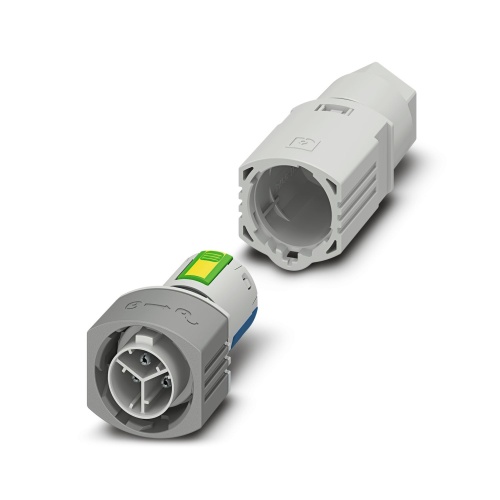

Phoenix Contact 1088672 Connector IPD PL 3P2,5 M GY
Normally In Stock
Code: 236078
Phoenix Contact 1088672 - Connector - 3 Positions - Cu - 20 AWG - 20 Amp - 500 V - IP66 - Push-Lock Connection - Snap-In Locking
Condition: New
Usually ships Same Day or Next Day$14.66
Sale Price
$12.22
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1088672 The product family includes a connector with a push-lock connection that can accommodate 2 or more pins with cross-sectional areas ranging from 0.5 to 2.5 square millimeters. It is rated for 500 volts and has a maximum current capacity of 20 amps, classified as a Polyamide (PA) material. The product has an external cable diameter range of 6 to 9 millimeters and 8 to 13 millimeters, with an identification code labeled "P".
Specifications
Connector Amperage
20 Amp
Connector Material
Cu
Connector protection
IP66
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
3
Sub Component
Installation Connector
Connector Voltage
500 Volt
Features
Easy distribution of power, as components are plugged directly
Simple, time-saving wiring in the field with Push-Lock connection
Reliable installation in harsh environments with IP66, IP68, and IP69K throughout the entire system
Secure, tool-free locking even in particularly difficult installation situations
Fast commissioning with preassembled cable assemblies
