Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 236076

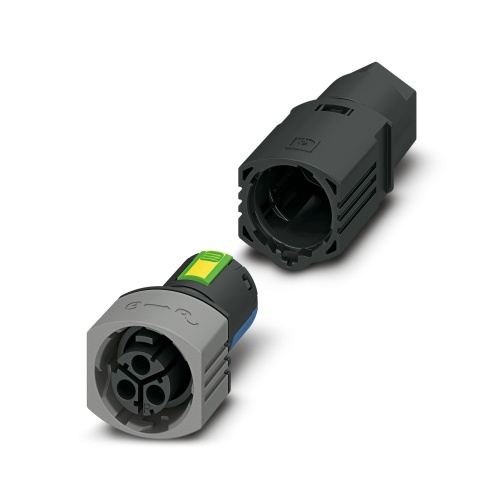

Phoenix Contact 1088666 Connector IPD PL 3P2,5 F BK
Normally In Stock
Phoenix Contact 1088666 - Connector - 3 Positions - Cu - 20 AWG - 20 Amp - 500 V - IP66 - Push-Lock Connection - Snap-In Locking
Condition: New
Usually ships Same Day or Next Day$14.59
Sale Price
$12.16
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1088666 The IPD connector product family features a push-lock connection with two or more positions, accommodating cables of varying sizes between 0.5mm² and 2.5mm². It is designed for use at 500V and can handle up to 20A of current. The connectors come in different versions, characterized by an external cable diameter ranging from 6mm to 9mm and also 8mm to 13mm.
Specifications
Connector Amperage
20 Amp
Connector Material
Cu
Connector protection
IP66
Manufacturer
Phoenix Contact
Component
Installation Connector
Number of Positions
3
Connector Voltage
500 Volt
Features
Easy distribution of power, as components are plugged directly
Simple, time-saving wiring in the field with Push-Lock connection
Reliable installation in harsh environments with IP66, IP68, and IP69K throughout the entire system
Secure, tool-free locking even in particularly difficult installation situations
Fast commissioning with preassembled cable assemblies
