Code: 236074

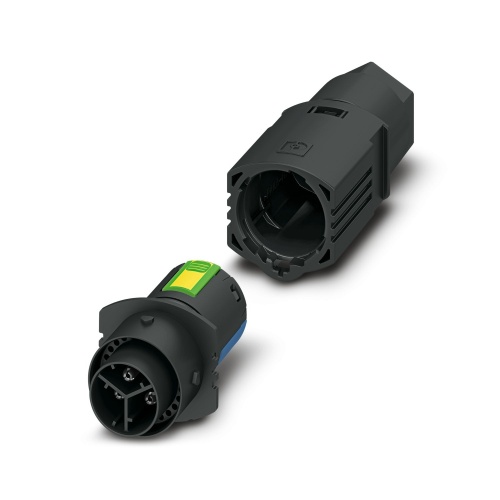

Phoenix Contact 1088662 Connector IPD P 3P2,5 M BK
Normally In Stock
Phoenix Contact 1088662 - Connector - 3 Positions - Cu - 20 AWG - 20 Amp - 500 V - IP66 - Push-Lock Connection - Snap-In Locking
Condition: New
Usually ships Same Day or Next Day$13.88
Sale Price
$11.57
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1088662 The IPD connector product family offers a push-lock connection with two to four pin positions, accommodating copper or other materials with cross-sectional areas between 0.5mm² and 2.5mm². The connectors are rated for voltages up to 500V and currents up to 20A, making them suitable for PA applications. They come in various cable diameters ranging from 6mm to 9mm and 8mm to 13mm, with an external casing color of black and a coding system denoted as "P".
Specifications
Connector Amperage
20 Amp
Connector Material
Cu
Connector protection
IP66
Manufacturer
Phoenix Contact
Component
Installation Connector
Number of Positions
3
Connector Voltage
500 Volt
Features
Easy distribution of power, as components are plugged directly
Simple, time-saving wiring in the field with Push-Lock connection
Reliable installation in harsh environments with IP66, IP68, and IP69K throughout the entire system
Secure, tool-free locking even in particularly difficult installation situations
Fast commissioning with preassembled cable assemblies
