Code: 235912

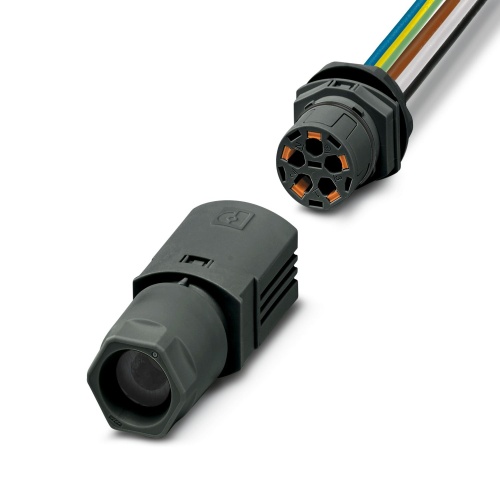

Phoenix Contact 1047372 Panel feed-through IPD WD 5P2,5 1,0 M25 BK
Normally In Stock
Phoenix Contact 1047372 - Panel feed-through - 5 Positions - Cu - 20 AWG - 16 Amp - 450 V - IP66 - Push-In Connection - Snap-In Locking
Condition: New
Usually ships Same Day or Next Day$27.78
Sale Price
$23.15
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1047372 The IPD product family features a panel feed-through with direct connection options, utilizing single wires or push-in connections. Available in configurations supporting 4+PE, M25, and varying copper wire sizes from 0.5 mm2 to 2.5 mm2. The device operates at 450 V and 16 A current, is classified as a power appliance (PA), and has a black external cable diameter ranging from 7 mm to 11 mm or an alternative 16 mm option, with a standard cable length of 1 m.
Specifications
Connector Amperage
16 Amp
Connector Material
Cu
Component
Feed-Through Connector
Connector protection
IP66
Manufacturer
Phoenix Contact
Number of Positions
5
Connector Voltage
450 Volt
Features
Convenient: quick and easy assembly without special tools
Fast and easy startup, thanks to tool-free Push-in connection technology
Reliable installation in harsh environments with IP66, IP68, and IP69K throughout the entire system
Downloads
Code: 235912
Phoenix Contact 1047372 Panel feed-through IPD WD 5P2,5 1,0 M25 BK
$27.78
Sale Price
$23.15
