Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 235910

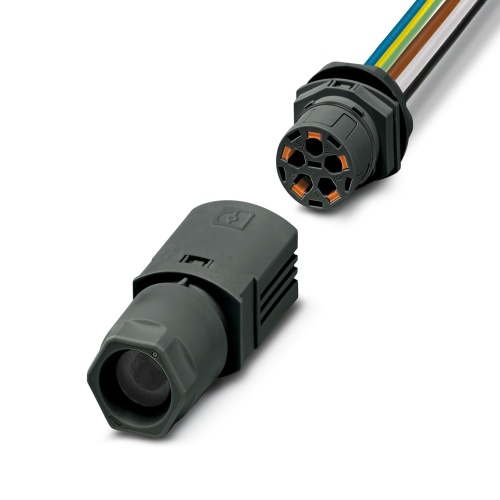

Phoenix Contact 1047363 Panel feed-through IPD WD 5P2,5 0,5 M25 BK
Normally In Stock
Phoenix Contact 1047363 - Panel feed-through - 5 Positions - Cu - 20 AWG - 16 Amp - 450 V - IP66 - Push-In Connection - Snap-In Locking
Condition: New
Usually ships Same Day or Next Day$24.72
Sale Price
$20.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1047363 The panel feed-through product is part of the IPD family, featuring a single wire push-in connection with four positions available plus extra positions for PE, M25, and other configurations, accommodating cables up to 2.5mm2 in diameter and rated for 450V with a maximum current capacity of 16A, suitable for PA applications, and comes in various cable sizes ranging from 7-11mm in external diameter, while its length can vary from 0.5m.
Specifications
Connector Amperage
16 Amp
Connector Material
Cu
Component
Feed-Through Connector
Connector protection
IP66
Manufacturer
Phoenix Contact
Number of Positions
5
Connector Voltage
450 Volt
Features
Convenient: quick and easy assembly without special tools
Fast and easy startup, thanks to tool-free Push-in connection technology
Reliable installation in harsh environments with IP66, IP68, and IP69K throughout the entire system
