Code: 235909

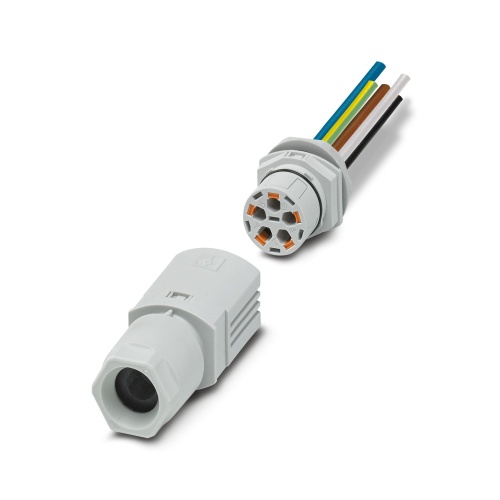

Phoenix Contact 1047360 Panel feed-through IPD WD 5P2,5 0,5 M25 GY
Normally In Stock
Phoenix Contact 1047360 - Panel feed-through - 5 Positions - Cu - 20 AWG - 16 Amp - 450 V - IP66 - Push-In Connection - Snap-In Locking
Condition: New
Usually ships Same Day or Next Day$24.72
Sale Price
$20.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1047360 The product's feed-through features a direct connection with a push-in method, suitable for multiple positions including up to 4 pins. The product family includes IPD and M25, with varying wire gauges from 0.5mm² to 2.5mm² and rated for 450V and 16A of power. The cable diameter ranges between 7mm and 16mm in length, with a standard cable diameter of 11mm, available in light gray color with an external cable diameter of 11mm.
Specifications
Connector Amperage
16 Amp
Connector Material
Cu
Component
Feed-Through Connector
Connector protection
IP66
Manufacturer
Phoenix Contact
Number of Positions
5
Connector Voltage
450 Volt
Features
Convenient: quick and easy assembly without special tools
Fast and easy startup, thanks to tool-free Push-in connection technology
Reliable installation in harsh environments with IP66, IP68, and IP69K throughout the entire system
