Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 235905

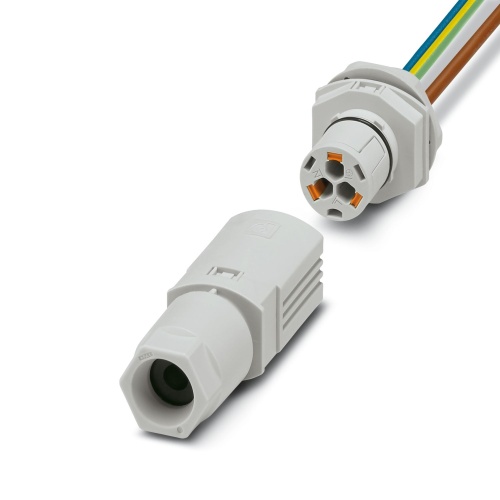

Phoenix Contact 1047354 Panel feed-through IPD WD 3P2,5 0,5 M25 GY
Normally In Stock
Phoenix Contact 1047354 - Panel feed-through - 3 Positions - Cu - 20 AWG - 16 Amp - 450 V - IP66 - Push-In Connection - Snap-In Locking
Condition: New
Usually ships Same Day or Next Day$18.58
Sale Price
$15.48
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1047354 The panel feed-through is a direct connection method that belongs to the IPD product family, utilizing single wires with push-in connections for up to 2 positions with PE (Protection Equipment) and optional M25 connections. It features rated voltages of 450 V, current ratings of 16 A, and comes in light gray PA material with external cable diameters ranging from 6 mm to 13 mm. The available wire sizes are 0.5 mm² to 2.5 mm², while the cable length is fixed at 0.5 meters.
Specifications
Connector Amperage
16 Amp
Connector Material
Cu
Component
Feed-Through Connector
Connector protection
IP66
Manufacturer
Phoenix Contact
Number of Positions
3
Connector Voltage
450 Volt
Features
Convenient: quick and easy assembly without special tools
Fast and easy startup, thanks to tool-free Push-in connection technology
Reliable installation in harsh environments with IP66, IP68, and IP69K throughout the entire system
