Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 23559
Phoenix Contact 2907514 Miniature Circuit Breaker TMC 82B 15A
Normally In Stock
Phoenix Contact 2907514 Breaker TMC 82B 15A
Condition: New
Usually ships Same Day or Next Day$50.22
Sale Price
$41.85
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2907514 The Thermal-magnetic Miniature Circuit Breaker is designed to provide branch circuit protection and protect against overloads, with a maximum breaking capacity of 10 kiloamperes. Its tripping characteristic follows the Type B curve, indicating a specific trip response. The device is mounted on an NS35-type mounting system and is rated for operation at currents up to 15 amps.
Specifications
Breaker Type
Supplementary Breaker
Breaker Mount Type
Din Rail
Breaker Mechanism Type
Toggle
Breaker Switching Type
Thermomagnetic
Breaker UL Rating
UL 489 Listed
Breaker Amperage Rating
15 Amp
Breaker Number of Poles
Two Pole
Breaker Trip Speed
Fast Trip
Breaker Protection For
Sensitive Equipment
Breaker Overcurrent Protection Rating

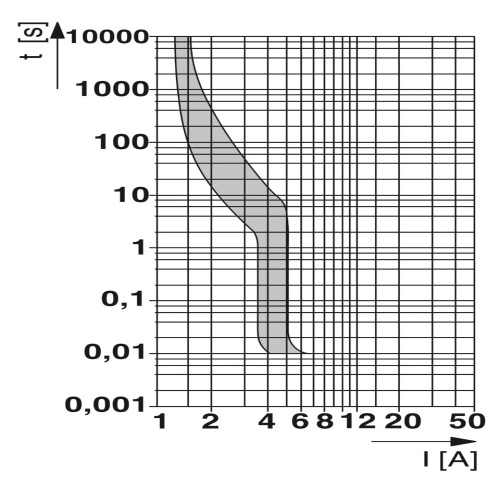

B Curve 3.2-4.8 X Amp Rating
Breaker Unit
Complete Unit
Breaker Voltage Rating
240 VAC
Manufacturer
Phoenix Contact
Component
Thermomagnetic Device Circuit Breaker
Features
Can be used worldwide due to international approvals
Suitable for various grid types, as it is available in 1-, 2-, 3-pos. versions
Ideally coordinated protection due to various tripping characteristics and a wide selection of nominal currents
Reduced inventory because of suitability for AC and DC applications
Optional accessories enable remote control and monitoring
Downloads
Phoenix 2907514 CAD data International.stpPhoenix 2907514 CAD data International.wrlPhoenix 2907514 Data Sheet English.pdfPhoenix 2907514 Flyer English.pdfPhoenix 2907514 Manufacturers declaration International.pdfPhoenix 2907514 Spec Sheet.pdfPhoenix 2907514 Tender Text English.zipPhoenix 2907514 User Manual.pdfPhoenix 2907514 Various English.pdf
