Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

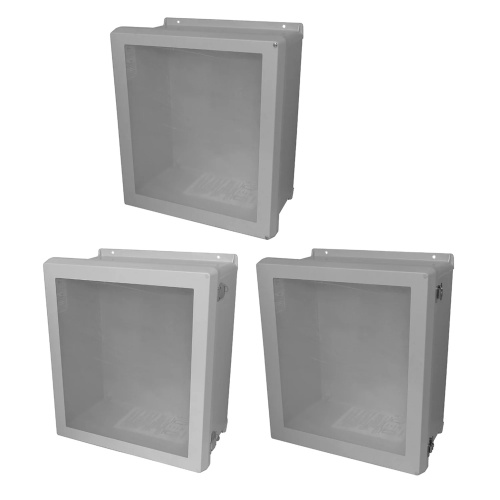

nVent Hoffman Fiberglass Reinforced Polyester Enclosure. VJB806HWLL1 Fiberglass Reinforced Polyester Enclosure. VJB Flat Cover Bonded Window Type 4X, 9.32x7.32x4.92, Lt Gray, FRP, HWLL
Normally In Stock
Code: 235578
nVent Hoffman VJB806HWLL1 Fiberglass Reinforced Polyester Available sized from 6x6 (152x152mm) to 30x24 (762x610mm)All VJ enclosures were designed to meet the Joint Industrial Council (JIC) standards in the United StatesEnclosures are maintenance free and corrosion resistantMade from hot compression molded halogen free, self extinguishing fiberglass reinforced polyester (FRP)Withstand continuous temperatures from 58°F to 302°F (-50°C to 150°C) and momentary exposure to temperatures up to 392°F (200°C)Polyurethane foam-in-place gasket1/4” transparent Lexan™ windowMolded mounting flanges and cover corner ribs increase enclosure strengthEnclosures can be modified to customer specifications (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$335.59
Sale Price
$279.66
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman VJB806HWLL1 Fiberglass Reinforced Polyester Available sized from 6x6 (152x152mm) to 30x24 (762x610mm)All VJ enclosures were designed to meet the Joint Industrial Council (JIC) standards in the United StatesEnclosures are maintenance free and corrosion resistantMade from hot compression molded halogen free, self extinguishing fiberglass reinforced polyester (FRP)Withstand continuous temperatures from 58°F to 302°F (-50°C to 150°C) and momentary exposure to temperatures up to 392°F (200°C)Polyurethane foam-in-place gasket1/4” transparent Lexan™ windowMolded mounting flanges and cover corner ribs increase enclosure strengthEnclosures can be modified to customer specifications
Specifications
Enclosure Composition
Polyester
Enclosure Depth
4.92"
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure NEMA Rating
IP66
Enclosure Width
7.32"
Enclosure Height
9.32"
Component
Non-Metallic Enclosure
Enclosure NEMA Rating
NEMA Type 3
Enclosure NEMA Rating
NEMA Type 3R
Enclosure NEMA Rating
NEMA Type 12
Enclosure NEMA Rating
NEMA Type 13
Manufacturer
Hoffman
Features
Withstand continuous temperatures from 58°F to 302°F (-50°C to 150°C) and momentary exposure to temperatures up to 392°F (200°C)
Enclosures are maintenance free and corrosion resistant
Made from hot compression molded halogen free, self extinguishing fiberglass reinforced polyester (FRP)
Polyurethane foam-in-place gasket
All VJ enclosures were designed to meet the Joint Industrial Council (JIC) standards in the United States
Available sized from 6x6 (152x152mm) to 30x24 (762x610mm)
1/4” transparent Lexan™ window
Enclosures can be modified to customer specifications
Molded mounting flanges and cover corner ribs increase enclosure strength
