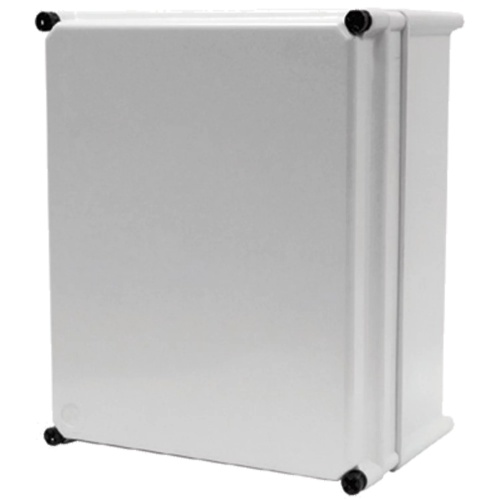

nVent Hoffman A11-2414E1 APO Flat Opaque Screw Cover Enclosure with Extension Type 4X, 23.74x14.65x9.29, Lt Gray, Fiberglass, E1
Code: 235160
nVent Hoffman A11-2414E1 Fiberglass Enclosure. Available sized from 7x6 (178x152mm) to 24x24 (610x610mm)Enclosures are maintenance free and corrosion resistantBases and covers are made from hot compression molded halogen free, self extinguishing fiberglass reinforced polyester (FRP) that can withstand continuous temperatures up to 158°F (70°C) and momentary exposure to 302°F (150°C)All enclosures can be easily modified to customer specificationsGaskets are made from continuously poured polyurethane foamBrass M4 threaded inserts are factory installed for mounting plate attachment4 to 6 bosses suitable for M6 threaded inserts are molded into the base (dependant on enclosure size).Maintain UL / CSA Type 4x with up to 5 extension collarsExtensions allow deeper enclosure depths (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$1046.62
Sale Price
$872.18
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman A11-2414E1 Fiberglass Enclosure. Available sized from 7x6 (178x152mm) to 24x24 (610x610mm)Enclosures are maintenance free and corrosion resistantBases and covers are made from hot compression molded halogen free, self extinguishing fiberglass reinforced polyester (FRP) that can withstand continuous temperatures up to 158°F (70°C) and momentary exposure to 302°F (150°C)All enclosures can be easily modified to customer specificationsGaskets are made from continuously poured polyurethane foamBrass M4 threaded inserts are factory installed for mounting plate attachment4 to 6 bosses suitable for M6 threaded inserts are molded into the base (dependant on enclosure size).Maintain UL / CSA Type 4x with up to 5 extension collarsExtensions allow deeper enclosure depths
Specifications
Enclosure Composition
Fiberglass
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Height
23.74"
Enclosure Width
14.65"
Enclosure Depth
9.29"
Component
Non-Metallic Enclosure
Enclosure NEMA Rating
NEMA Type 3
Enclosure NEMA Rating
NEMA Type 3R
Enclosure NEMA Rating
NEMA Type 12
Enclosure NEMA Rating
NEMA Type 13
Enclosure NEMA Rating
IP67
Enclosure NEMA Rating
IK10
Manufacturer
Hoffman
Features
Gaskets are made from continuously poured polyurethane foam
Bases and covers are made from hot compression molded halogen free, self extinguishing fiberglass reinforced polyester (FRP) that can withstand continuous temperatures up to 158°F (70°C) and momentary exposure to 302°F (150°C)
All enclosures can be easily modified to customer specifications
Brass M4 threaded inserts are factory installed for mounting plate attachment
Enclosures are maintenance free and corrosion resistant
Available sized from 7x6 (178x152mm) to 24x24 (610x610mm)
4 to 6 bosses suitable for M6 threaded inserts are molded into the base (dependant on enclosure size).
Extensions allow deeper enclosure depths
Maintain UL / CSA Type 4x with up to 5 extension collars
