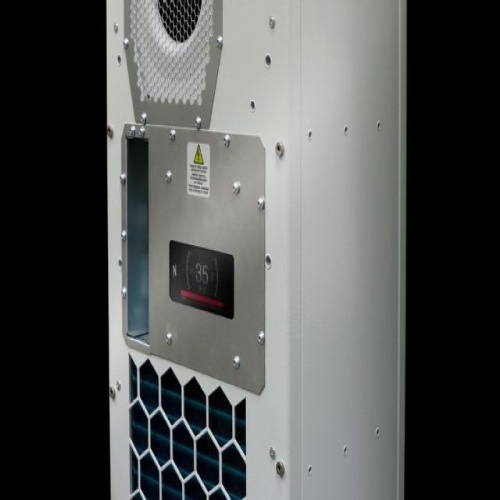

Rittal 3189340 Wall-mounted air conditioner Blue e + Outdoor 1.5 kW – 5.0 kW, 17061 BTU, 480 VAC
Normally In Stock
Code: 234518
Rittal 3189340 - SK cooling unit Blue e+, wall-mounted outdoor, 5.0 kW, 380-480 V, 3~, 50-60 Hz, aluminum, WHD: 465 x 1640 x 360 mm
Condition: New
Usually ships Same Day or Next DayALL RITTAL ORDERS THAT EXCEED 50 LBS WILL SHIP FREIGHT.
*NON-CANCELLABLE, NON-RETURNABLE*
$20004.07
Sale Price
$16670.06
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Rittal 3189340 - Energy-efficient wall-mounted cooling units Blue e+ Outdoor in the power classes 1500 W to 5000 W. They offer optimum protection for demanding environments thanks to the high protection category of IP56 / UL Type 12/3R/4 and the temperature range of -30 °C to 60 °C. The cooling unit can be mounted in three mounting types (surface mounting, partially internal installation and fully internal installation), for example on Toptec project solutions. Includes: Condenser with hydrophobic RiNano coating, Integral electric condensate evaporation, Wired ready for connection (plug, in terminal strip), Mounting frame for universal attachment to outdoor enclosures for surface mounting, partially internal installation and fully internal installation, Assembly components
Specifications
AC Composition
Aluminum
Manufacturer
Rittal
AC Voltage
480 VAC
Component
Cooling Unit
AC Max BTU Rating
17061 BTU
Features
Supply Includes: Condenser with hydrophobic RiNano coating Integral electric condensate evaporation Fully wired ready for connection (plug-in terminal strip) Mounting frame for universal attachment to outdoor enclosures for external, partial internal and full internal mounting. Assembly parts
Benefits: Average 75% energy savings thanks to speed-regulated components and heat pipe technology Longer service life of the components inside the enclosure and the cooling unit due to component-friendly cooling Intuitive operation due to touch display and intelligent interfaces
Note: By downloading the software, a contract is concluded between the contractual partner and Rittal for the free use of the software in accordance with these licence conditions.
Design: wall-mounted Outdoor
Option: For remote monitoring and networking of cooling units and chillers in the Blue e+ generation, please use the IoT interface (Model No. 3124.300). Increase machine availability and process reliability with remote monitoring of device data, statuses and system messages.
