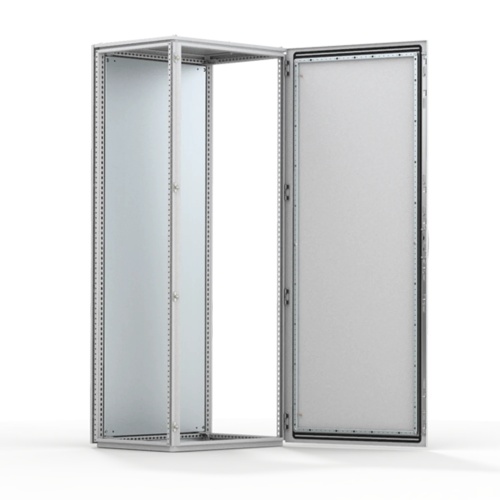

Hoffman MCS18065R5 Modular Single Door, MCS, 1800x600x500mm, Light Gray, Mild Steel

Hoffman MCS18065R5 The mild steel double door modular floor standing enclosure range, MCD, is ideal for installation in confined spaces where a single door, when opened, would take up too much space in front of the enclosure. The doors' loading capacity also increases as it is divided over two doors. With a IP 55 protection degree, components inside the enclosure are well protected and makes it well suited for many different applications. Mild steel side panels, SPM, need to be ordered separately, to close individual enclosures and enclosure assembly's, to ensure the stated protection degree is achieved. Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660 Including integrated external hole patternDoor: Mounted with four hinges allowing left or right hand opening; including door frame with 25 mm hole patternRear panel: Fitted by M6 torx screws; standard facilities for rear door mountingSupplied as an accessoryRemovable roof panelLock: Espagnolette 4-point locking system which does not interfere with the enclosure inner space; standard double-bit lock with 3 mm insertBottom plate: Consists of three or four (D>600) piecesMounting plate: Double folded and slides into position with adjustable depths of 25 mm, with the MPD02 accessoryEarthing/Grounding: All panels are earthed through their fittings and are equipped with a separate earthing studMounting requirements: Standard delivery ready for combined installation; for stand-alone installation add side panelsDelivery: Frame with fitted door, rear panel, roof panel, bottom plates, mounting plate (not included for PER5 version) and door frame; for 400 mm wide enclosures, a mounting plate, bottom plates and door frame are not included; for enclosures 2200 mm height, delivery includes two CMB profiles mounted in depth; delivery also includes earthing bolts

Specifications
Door-Cover Finish	Steel
Door-Cover-Window Composition	Steel
Manufacturer	Hoffman
Door-Cover For Frame Width	23.62"
Door-Cover For Frame Height	70.87"
Component	Mudular Door
Door-Cover Type	NEMA Type 12; IP55; IK10
