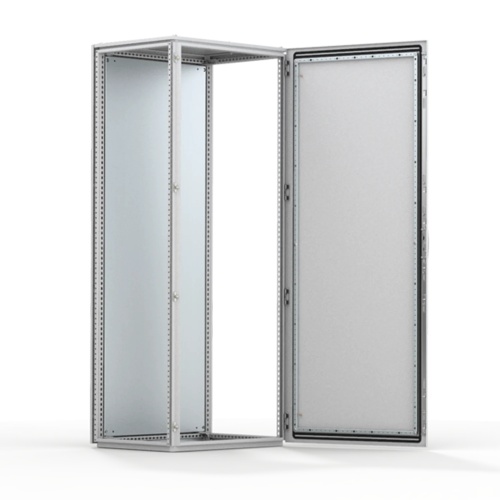

Hoffman MCS18064R5 Modular Single Door, MCS, 1800x600x400mm, Light Gray, Mild Steel
Hoffman MCS18064R5 Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660 Including integrated external hole patternDoor: Mounted with four hinges allowing left or right hand opening; including door frame with 25 mm hole patternRear panel: Fitted by M6 torx screws; standard facilities for rear door mountingSupplied as an accessoryRemovable roof panelLock: Espagnolette 4-point locking system which does not interfere with the enclosure inner space; standard double-bit lock with 3 mm insertBottom plate: Consists of three or four (D>600) piecesMounting plate: Double folded and slides into position with adjustable depths of 25 mm, with the MPD02 accessoryEarthing/Grounding: All panels are earthed through their fittings and are equipped with a separate earthing studMounting requirements: Standard delivery ready for combined installation; for stand-alone installation add side panelsDelivery: Frame with fitted door, rear panel, roof panel, bottom plates, mounting plate (not included for PER5 version) and door frame; for 400 mm wide enclosures, a mounting plate, bottom plates and door frame are not included; for enclosures 2200 mm height, delivery includes two CMB profiles mounted in depth; delivery also includes earthing bolts
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day
Price: $2728.70
Sale Price:
$2174.56
