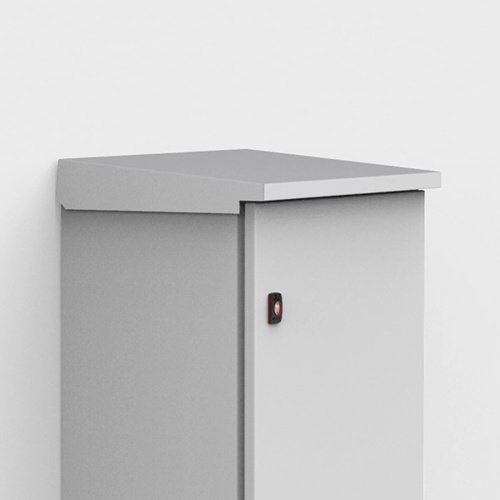

nVent Hoffman ARF04030R5 Rain Hood, ARF, 68x400x300mm, Light Gray, Mild Steel
Normally In Stock
Code: 231678
nVent Hoffman ARF04030R5 Feature: Mild steel rain hood for mild steel wall mounted enclosuresAdvantage: The rain hood is mounted on top of the enclosure and provides shelter via a sloped roof; the rain hood features a drip strip that protects the enclosure's door gasket from the accumulation of water while also shielding it from UV radiationBenefit: The rain hood protects installed components from water as it removes the risk of accumulated water on top of the gasket, dripping into the enclosure when the door is openedComment: The overall dimensions of the enclosure will increase by 60mm in height, 20mm in width and 20mm in depth
Condition: New
Usually ships Same Day or Next Day$602.76
Sale Price
$502.30
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman ARF04030R5 Feature: Mild steel rain hood for mild steel wall mounted enclosuresAdvantage: The rain hood is mounted on top of the enclosure and provides shelter via a sloped roof; the rain hood features a drip strip that protects the enclosure's door gasket from the accumulation of water while also shielding it from UV radiationBenefit: The rain hood protects installed components from water as it removes the risk of accumulated water on top of the gasket, dripping into the enclosure when the door is openedComment: The overall dimensions of the enclosure will increase by 60mm in height, 20mm in width and 20mm in depth
Specifications
Component
Rain Hood
Rain Hood Composition
Mild Steel
Rain Hood Size
68X400x300mm
Manufacturer
Hoffman
Features
Additional information: For exposure to high levels of UV radiation, the ARF should be ordered with 100% polyester paint coating. An additional corrosion protection primer coating is recommended for humid environments. Resistance to corrosion must be taken into consideration for outdoor and indoor applications. The ARF is not compatible with 180º MMH hinges.
Finish: RAL 7035 structured powder coating.
Pack quantity: 1 rain hood with mounting accessories.
Material: 1.5 mm mild steel.
Description: To be fitted as an outdoor shelter on single mounted enclosures. The roof is slightly sloped and has a dripstrip. Machining is required. It increases the enclosure dimension in H:60 mm, D:20 mm and W:20 mm.
