Code: 231581

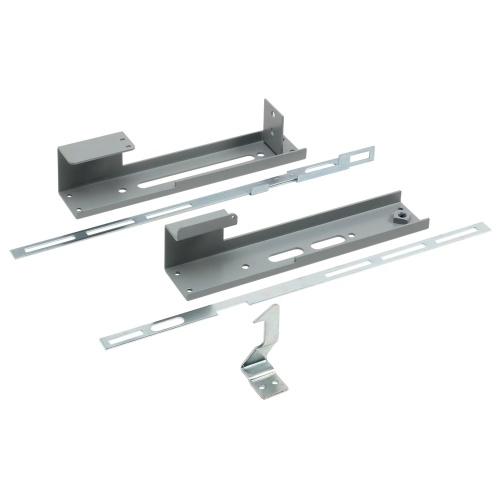

nVent Hoffman ABF Operator Adapter Universal Cutout, ABB Controls Large Handle, Gray, Steel
nVent Hoffman ABF Used on all nVent HOFFMAN Type 4 and 12 disconnect enclosures with a universal flange cutoutAn operator adapter is required to install a disconnect in Bulletin A21, A28, A34, A35 and A4L3D HOFFMAN enclosures that have a universal cutoutOperator adapters include an adapter plate and additional components needed to interlock the master door with the disconnect operating mechanismInstallation instructions are included with each operator adapterEach brand and type of disconnect requires a different operator adapterA 400A (or greater) disconnect switch and 600A (or greater) circuit breaker require the large handleA 200A (or less) disconnect switch and 400A (or less) circuit breaker require a small handle
Condition: New
Usually ships Same Day or Next Day$520.42
Sale Price
$433.68
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman ABF Used on all nVent HOFFMAN Type 4 and 12 disconnect enclosures with a universal flange cutoutAn operator adapter is required to install a disconnect in Bulletin A21, A28, A34, A35 and A4L3D HOFFMAN enclosures that have a universal cutoutOperator adapters include an adapter plate and additional components needed to interlock the master door with the disconnect operating mechanismInstallation instructions are included with each operator adapterEach brand and type of disconnect requires a different operator adapterA 400A (or greater) disconnect switch and 600A (or greater) circuit breaker require the large handleA 200A (or less) disconnect switch and 400A (or less) circuit breaker require a small handle
Specifications
Component
Adapter
Sub Component
Operator Adapters For Universal Cutouts
Manufacturer
Hoffman
Features
Each brand and type of disconnect requires a different operator adapter
Operator adapters include an adapter plate and additional components needed to interlock the master door with the disconnect operating mechanism
Installation instructions are included with each operator adapter
A 400A (or greater) disconnect switch and 600A (or greater) circuit breaker require the large handle
An operator adapter is required to install a disconnect in Bulletin A21, A28, A34, A35 and A4L3D HOFFMAN enclosures that have a universal cutout
Used on all nVent HOFFMAN Type 4 and 12 disconnect enclosures with a universal flange cutout
A 200A (or less) disconnect switch and 400A (or less) circuit breaker require a small handle
