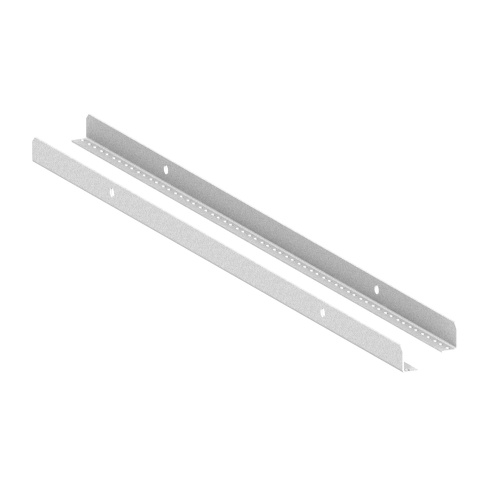

nVent Hoffman P2ALB22 ProLine G2 Lifting Bars, 2200
Normally In Stock
Code: 231255
nVent Hoffman P2ALB22 Clear, Zinc-Coated structural steel barsFurnished in pairs, with the inclusion of bolts and washers for installationDoes not require removal of enclosure top cover, and secures into the frame's corner blocksCan be used to lift joined enclosures up to 6 bayed enclosures (3000-mm total width); Load rating: 3000 lbs. (1360 kg) per enclosureLifting Bars are designed for overhead lifting in conjunction with shackles and a spreader bar. Use of shackles instead of hooks is preferred. The angle between the top of the enclosure and the cable or chain must be at least 45°. Use only slings and spreader bars that are designed for the specific application and are in compliance with regulations established by OSHA, ASME, ISA, ASTM and other governing agencies.
Condition: New
Usually ships Same Day or Next Day$2173.43
Sale Price
$1811.19
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman P2ALB22 Clear, Zinc-Coated structural steel barsFurnished in pairs, with the inclusion of bolts and washers for installationDoes not require removal of enclosure top cover, and secures into the frame's corner blocksCan be used to lift joined enclosures up to 6 bayed enclosures (3000-mm total width); Load rating: 3000 lbs. (1360 kg) per enclosureLifting Bars are designed for overhead lifting in conjunction with shackles and a spreader bar. Use of shackles instead of hooks is preferred. The angle between the top of the enclosure and the cable or chain must be at least 45°. Use only slings and spreader bars that are designed for the specific application and are in compliance with regulations established by OSHA, ASME, ISA, ASTM and other governing agencies.
Specifications
Line
PROLINE G2
Component
Lifting Bars
Manufacturer
Hoffman
Features
Lifting Bars are designed for overhead lifting in conjunction with shackles and a spreader bar. Use of shackles instead of hooks is preferred. The angle between the top of the enclosure and the cable or chain must be at least 45°. Use only slings and spreader bars that are designed for the specific application and are in compliance with regulations established by OSHA, ASME, ISA, ASTM and other governing agencies.
Does not require removal of enclosure top cover, and secures into the frame's corner blocks
Can be used to lift joined enclosures up to 6 bayed enclosures (3000-mm total width), Load rating: 3000 lbs. (1360 kg) per enclosure
Furnished in pairs, with the inclusion of bolts and washers for installation
Clear, Zinc-Coated structural steel bars
