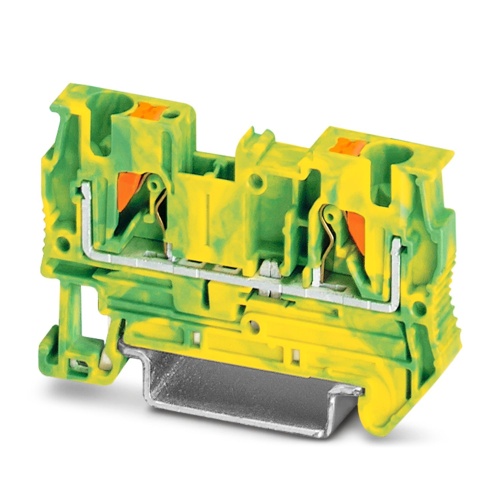

Phoenix Contact 3211766 Protective conductor terminal block PT 4-PE
Normally In Stock
Code: 23090
PT 4-PE Phoenix Contact 3211766 Phoenix Contact PT 4-PE. Ground Block 6.2mm Green-Yellow Single through Push-In Connection 800V, 38A, 10-24AWG (Sold in packs of 50)
Condition: New
Usually Ships Same day or Next Day$6.47
Sale Price
$5.39
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3211766 A protective conductor terminal block with a specific configuration can be found in electrical installations. It has two connections made using push-in methods and is available in various cross-sectional sizes from 0.2 mm² to 6 mm². The mounting type includes NS 35/7,5 and NS 35/15, while its color is typically green-yellow.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Min Wire Size
24
Terminal Block Grounded
Grounded
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Green/Yellow
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Ground Terminal Block
Sub Component
Ground Modular Terminal Block
Features
Tested for railway applications
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Downloads
Phoenix 3211766 CAD data International.dxfPhoenix 3211766 CAD data International.pdfPhoenix 3211766 CAD data International.stpPhoenix 3211766 CAD Drawing.zipPhoenix 3211766 Certification English-2.pdfPhoenix 3211766 Certification English.pdfPhoenix 3211766 Manufacturers declaration International-2.pdfPhoenix 3211766 Manufacturers declaration International-3.pdfPhoenix 3211766 Manufacturers declaration International-4.pdfPhoenix 3211766 Manufacturers declaration International.pdfPhoenix 3211766 Safety note English.pdfPhoenix 3211766 Spec Sheet.pdfPhoenix 3211766 Tender Text English.zipPhoenix 3211766 User instructions for the Ex Area International.pdf
