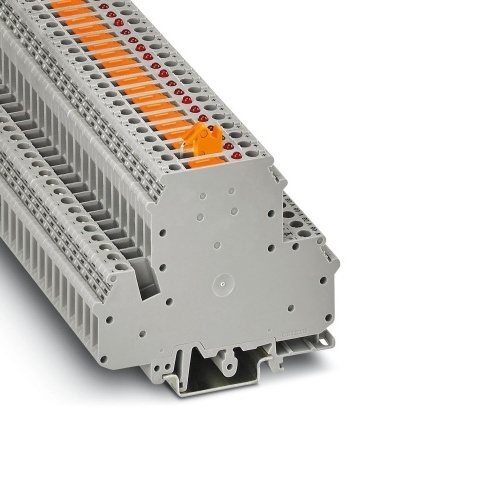

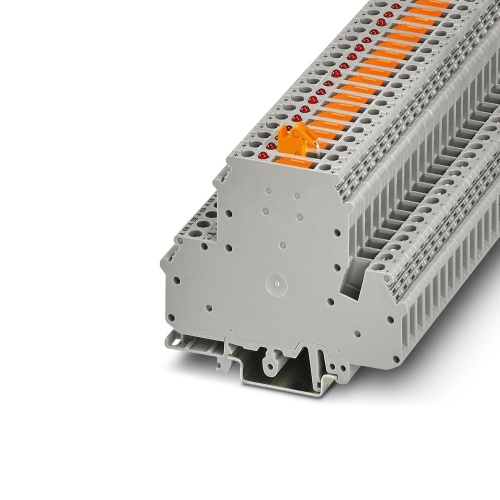

Phoenix Contact 2800046 Knife-disconnect terminal block UKK 5-MTK-P/P-LA 60RD/O-U
Normally In Stock
Code: 23055
UKK 5-MTK-P/P-LA 60RD/O-U Phoenix Contact 2800046 Double Level Terminal Block UKK 5-MTK-P/P-LA 60RD/O-U Gray
Condition: New
Usually Ships Same day or Next Day$41.46
Sale Price
$34.55
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2800046 The knife-disconnect terminal block features test socket screws for inserting test plugs and is rated for 400 V, 26 A with two levels of connection options. The first level has a rated cross-section of 4 mm² to 0.2 mm², while the second level also offers screw connections with similar cross-sectional ratings. Mounting options include NS 35/7.5, NS 35/15, and NS 32, with all configurations featuring a gray color.
Specifications
Terminal Block Indication
48V LED Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
6.1 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Terminal Block Diode
With Diode
Terminal Block With Test Disconnects
With Test Socket Screws
Terminal Block Amperage
26 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
Convenient separation of circuits with a lever-type disconnect knife, isolating plug, or rotary contact
User-friendly current measurement via the testing option on either side of the disconnect point
Safe operation, as the disconnect lever is latched in the end positions
Clear identification of the disconnect point with color marking
Individual assembly with disconnect element, fuse plug, component connector, and feed-through connector
