Code: 23030

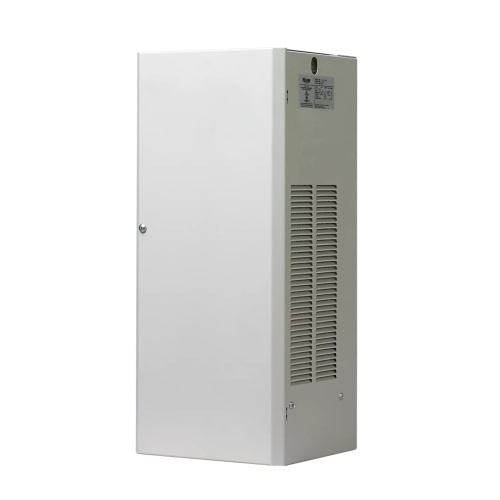

nVent Hoffman CR230226G002 AC 230V 1600 BTU Indoor
nVent Hoffman CR230226G002 Harsh Environment Air Conditioner 230V 1,600 BTU AC Type 4 Indoor without Heat Package, 2.5 Amp, (23"H x 10"W x 8.75"D) 469 nominal watts Side Mount. Ambient temperature range of -40F-131F.
Condition: New
Usually ships Same Day or Next Day$5388.84
Sale Price
$4490.70
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman CR230226G002 Harsh Environment Air Conditioner 230V 1,600 BTU AC Type 4 Indoor without Heat Package, 2.5 Amp, (23"H x 10"W x 8.75"D) 469 nominal watts Side Mount. Ambient temperature range of -40F-131F.
Specifications
AC Width
11"
AC Mounting
Side Mount
AC Maximum Ambient Temp
131 F
AC Harsh Environment
For Harsh Environment
AC Voltage
230 VAC
AC Max BTU Rating
1733 BTU
AC Type
Air Conditioner (Compressor)
AC Composition
Steel
AC Environment
Outdoor-Indoor
AC Minimum Ambient Temp
-40 F
Component
Air Conditioner
Line
Proair Harsh Environment
AC Height
24"
AC Depth
9"
AC NEMA Rating
NEMA Type 12
AC NEMA Rating
NEMA Type 3R
AC NEMA Rating
NEMA Type 4
AC Amperage
1.7 Amp
Manufacturer
Hoffman
Acs Watts
508 Watts
Features
Models for 115, 230 and 460 single phase VAC power input
Cleanable reusable aluminum mesh filter protects coils for maximum cooling performance
R134a, R513A or R407C Refrigerant
Operating temperature range from -40 F/-40 C to 131 F/55 C (with optional low-ambient package)
Smooth surface with minimal use of visible fasteners
Easy maintenance: hinged front cover allows quick access to all components, condenser coil can be cleaned while unit is still mounted to the cabinet
Reliable mechanical thermostat located behind the filter of the unit
Easy-mount flanges for simple installation
High-performance fans and blowers designed for densely packed enclosures
Low-carbon mild-steel sheet-metal cover for rugged factory and outdoor environments
Robust reciprocating compressor
Every unit functionally tested before shipping
Standard Indoor Air Conditioner models also include Electro-Mechanical Thermostat and Surge Suppressor
Mounting hardware, gaskets and user manual furnished with the unit
Downloads
Hoffman CR230226G002 CAD Drawing.zipHoffman CR230226G002 CR23 CAD Files.zipHoffman CR230226G002 Declaration of Compliance.pdfHoffman CR230226G002 EAC Certification.pdfHoffman CR230226G002 EU Certification.pdfHoffman CR230226G002 Instruction Manual.pdfHoffman CR230226G002 Spec Sheet.pdfHoffman CR230226G002 UL Certification.pdfHoffman CR230226G002 User Manual.pdf
