Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

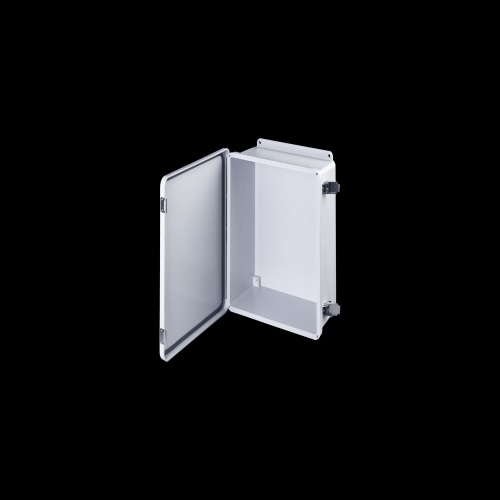

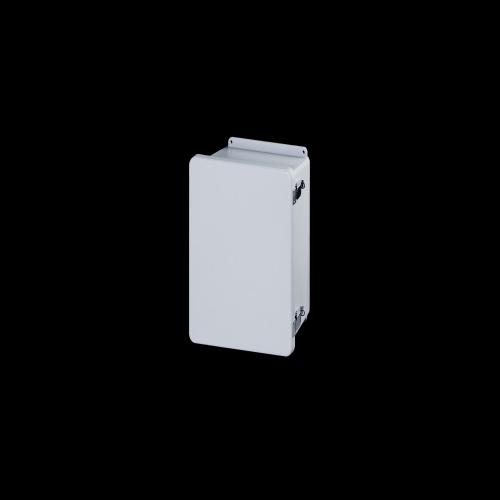

Stahlin J1614HPL J Series Fiberglass Enclosure - 16" x 14" x 6"
Normally In Stock
Code: 230191
Stahlin J1614HPL 16 x 14 x 6 Inches Fiberglass Enclosure, Opaque Cover “HPL” Configuration, Hinged, Padlock Latches
Need holes, custom windows, or digital printing?
Enclosure does not include backplate (Sold Separately).
Condition: New
Usually Ships Same Day or Next DayDOES NOT INCLUDE THE BACKPANEL
$276.40
Sale Price
$230.33
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Stahlin J1614HPL 16 x 14 x 6 Inches Fiberglass Enclosure, Opaque Cover “HPL” Configuration, Hinged, Padlock Latches
Need holes, custom windows, or digital printing?
BUILD A MODIFIED ENCLOSURE
Specifications
Enclosure Depth
6"
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Interior Color
Gray
Enclosure Composition
Fiberglass
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Manufacturer
Stahlin
Enclosure Latch Type
Stainless Steel Latch
Enclosure Hinge Type
Stainless Steel Hinge
Line
J Series
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Height
16"
Enclosure Width
14"
Component
Non-Metallic Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Enclosure NEMA Rating
NEMA Type 13
Enclosure NEMA Rating
NEMA Type 6
Features
Increased wall thickness vs. competitive models offers structural support and prevents potential water ingress
Integral mounting flange vs. mounting feet (no assembly required)
Molded-in inserts provide added pull-out strength
Opaque Cover
Overhang cover on smooth sided base
High temperature
flame retardant
non-corrosive
All stainless hardware latches and screws
Full-length
stainless-steel hinge
Chemically resistant
fiberglass reinforced polyester
Non-corrosive
environmental designs
Stainless steel retention chain on screw covers
Continuous polyurethane gasket
Manufactured with SolarGuard®, Stahlin's proprietary formulation of non-halogenated fiberglass, offering superior resistance to outdoor exposure, chemicals and flames.

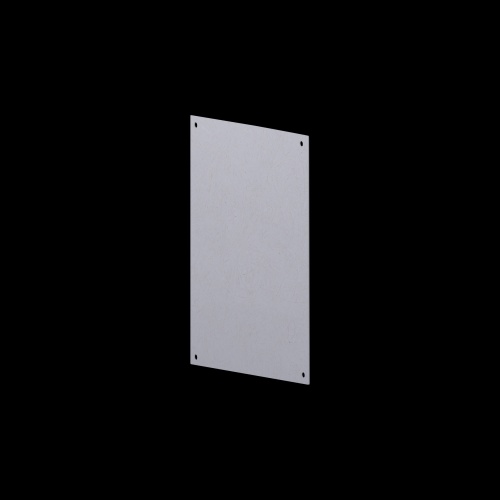

Back Panels Available for all sizes
Downloads
Code: 230191
Stahlin J1614HPL J Series Fiberglass Enclosure - 16" x 14" x 6"
$276.40
Sale Price
$230.33
