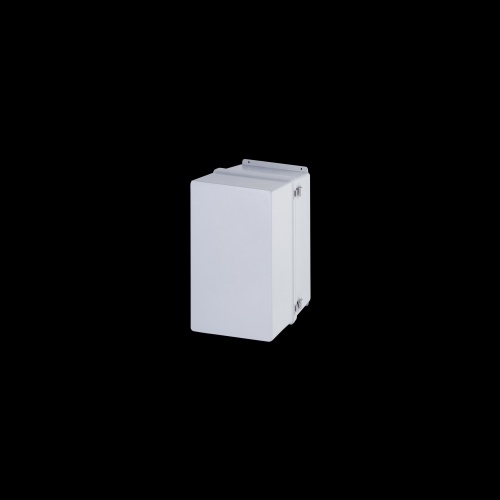

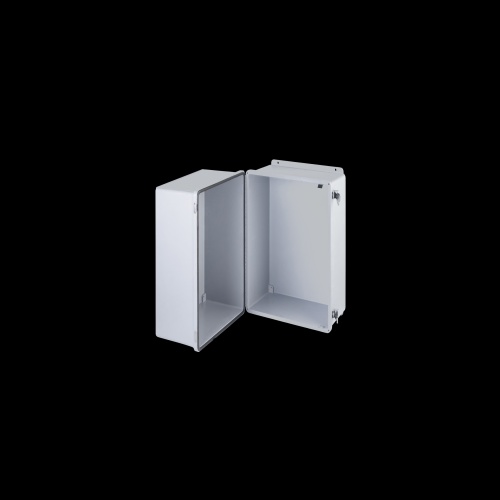

Stahlin J161412SSH Fatboy Series Fiberglass Enclosure - 16" x 14" x 12"
Normally In Stock
Code: 230188
Stahlin J161412SSH 16 x 14 x 12 Inches Fiberglass Enclosure, Opaque Cover “SSH” Configuration, Hinged, Padlock Latches
Need holes, custom windows, or digital printing?
Enclosure does not include backplate (Sold Separately).
Condition: New
Usually Ships Same Day or Next DayDOES NOT INCLUDE THE BACKPANEL
$454.61
Sale Price
$378.84
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Stahlin J161412SSH 16 x 14 x 12 Inches Fiberglass Enclosure, Opaque Cover “SSH” Configuration, Hinged, Padlock Latches
Need holes, custom windows, or digital printing?
BUILD A MODIFIED ENCLOSURE
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Depth
12"
Enclosure Interior Color
Gray
Enclosure Composition
Fiberglass
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Manufacturer
Stahlin
Enclosure Latch Type
Stainless Steel Latch
Enclosure Hinge Type
Stainless Steel Hinge
Line
Fatboy Series
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Height
16"
Enclosure Width
14"
Component
Non-Metallic Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Enclosure NEMA Rating
NEMA Type 13
Enclosure NEMA Rating
NEMA Type 6
Features
Clam shell design
opening from the middle of the enclosure
Increased wall thickness vs. competitive models offers structural support and prevents potential water ingress
Integral mounting flange vs. mounting feet (no assembly required)
Molded-in inserts provide added pull-out strength
Opaque cover
Overhang cover on smooth sided base
High temperature
flame retardant
non-corrosive
All stainless hardware latches and screws
Full-length
stainless-steel hinge
Chemically resistant
fiberglass reinforced polyester
Non-corrosive
environmental designs
Stainless steel retention chain on screw covers
Continuous polyurethane gasket
Manufactured with SolarGuard®, Stahlin's proprietary formulation of non-halogenated fiberglass, offering superior resistance to outdoor exposure, chemicals and flames.
Back Panels Available for all sizes
