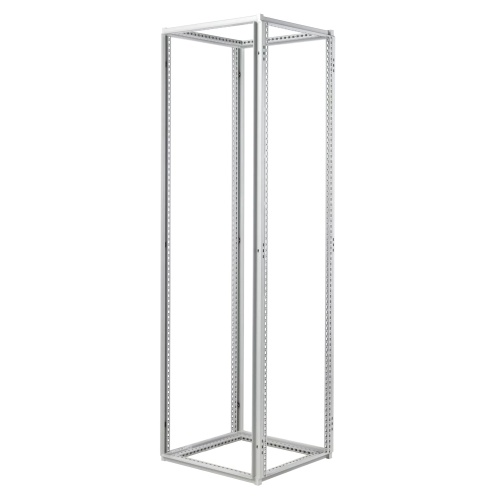

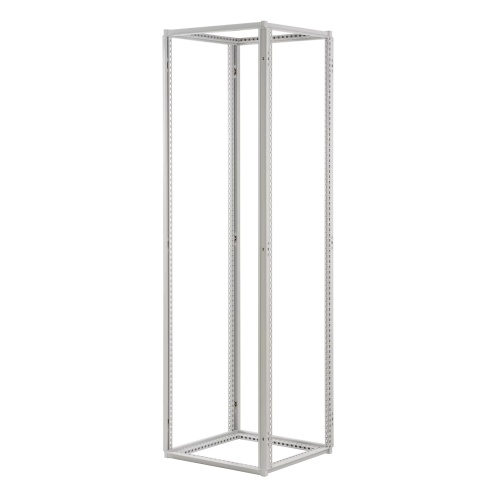

nVent Hoffman P2F1468 PROLINE G2 Frame
Code: 22855
nVent Hoffman P2F1468 PROLINE G2 Frame
Condition: New
Usually ships Same Day or Next Day$1746.79
Sale Price
$1455.66
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman P2F1468 PROLINE G2 Frame
Specifications
Frame Composition
Steel
Frame Number of Doors
1 Door
Frame Enclosure Type
Free-Standing
Frame Enclosure Width
24"
Frame Enclosure Width mm
600 mm
Frame Enclosure Depth
32"
Frame Enclosure Depth mm
800 mm
Frame Enclosure Height mm
1400 mm
Frame Enclosure Height
56"
Component
Frame
Line
PROLINE G2
Manufacturer
Hoffman
Features
Removable rear center vertical/support for frames greater than 1200-mm in width, there is no front center vertical, providing full access for subpanel installation
Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
Flange trough collar on door and side openings deflect dust and debris away from the enclosure interior
Integral frame channels support the full weight of the mounting subpanel, which comes with the EZ Load Glide Block system for multiple subpanel installation methods
RAL 7035 textured light-gray polyester powder paint finish
12 gauge (2.5mm), roll-formed steel frame with welded steel corners and hybrid frame profile for superior performance under load
Individual frames designed for joining/baying in multiple directions with the inclusion of joining kits
Appropriate gasketed door(s) and covers are required to maintain a Type-12 environmental rating, sold separately
Provisions for mounting subpanel, rack mounting and grid/rail system mounting to support many unique customer applications
