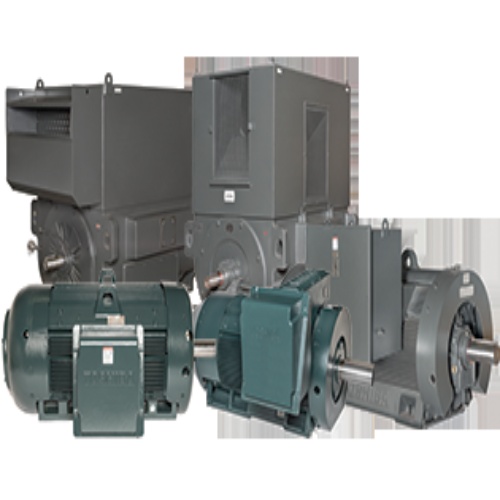

Toshiba C203TWQL11F-CF - TEWAC, 3 Phase, 5000 HP

Toshiba 3/44SDSC34H-P - Toshiba's medium voltage Totally Enclosed Water-to-Air Cooled (TEWAC) motor series is designed for general-purpose applications, offering a top hat design. These motors prioritize energy conservation and product performance, delivering high torque, low vibration, and enhanced reliability. With the flexibility for customization, Toshiba's medium voltage motor offerings are well-equipped to exceed specific application requirements, thanks to their in-house design, engineering, and manufacturing capabilities.

Specifications
Motor Voltage Phases	3 Phase
Motor Frequency	60 Hz
Motor RPM's	3600 RPM
Manufacturer	Toshiba Motors
Motor Voltage	4000 Volt
Motor Frame Model	6812/13USS
Motor Amperage (Full Load)	603 Amp
Motor Horsepower	5000 HP
Motor Enclosure Type	Totally Enclosed Water-to-Air Cooled
