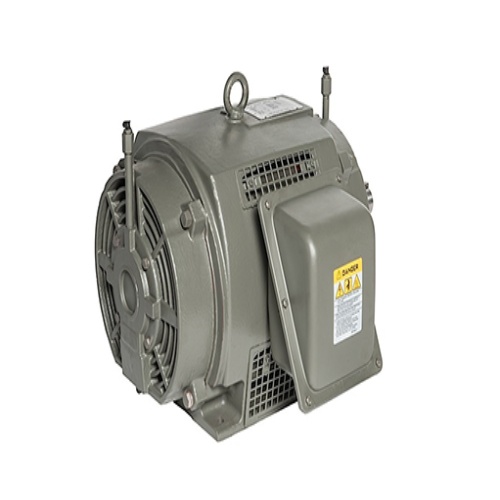

Toshiba 0206DPKB31A-PZ - ODP, 3 Phase, 20 HP
Normally In Stock
Code: 226468
Toshiba 0206DPKB31A-PZ - Open Drip Proof - 460 Volt - 20 HP - 1200 RPM - 26.1 Amp - 60 Hz - Motor Frame Model: 324T
Condition: New
Usually ships Same Day or Next Day$7342.74
Sale Price
$6118.95
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Toshiba 0206DPKB31A-PZ - Toshiba's Open Drip-Proof (ODP) Dry Kiln motor series is specially designed for challenging dry kiln environments in the lumber industry. These motors feature an upgraded insulation system, enabling them to run efficiently at higher temperatures (115° and 135°C) for faster processing and increased energy efficiency with adjustable speed drives. They are built to withstand harsh conditions, including high temperatures, humidity, and chemicals, and come with NEMA Premium® Efficiency rating, cast iron construction, H-class insulation, and IP22 protection. These motors are well-suited for softwood and hardwood dry kilns, high-temperature fans, and oven conveyors.
Specifications
Motor Voltage Phases
3 Phase
Motor Horsepower
20 HP
Motor Frame Model
324T
Motor RPM's
1200 RPM
Motor Frequency
60 Hz
Motor Voltage
460 Volt
Manufacturer
Toshiba Motors
Motor Amperage (Full Load)
26.1 Amp
Motor Enclosure Type
Open Drip Proof
Features
The Motors & Drives division offers a full range of low and medium voltage motors and adjustable speed drives.
These products, hallmarked for quality, performance, and durability, can be customized to meet the most demanding applications.
