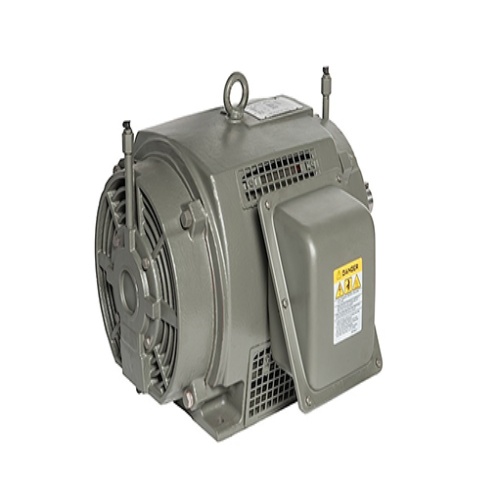

Toshiba 0158DPKB31A-PZ - ODP, 3 Phase, 15 HP
Code: 226467
Toshiba 0158DPKB31A-PZ - Open Drip Proof - 460 Volt - 15 HP - 900 RPM - 21.5 Amp - 60 Hz - Motor Frame Model: 324T
This product is now obsolete from the manufacturer
Below are replacement products designated by the manufacturer. See description and specs to assure they will work for your application.
Replacement Products
Description
Toshiba 0158DPKB31A-PZ - Toshiba's Open Drip-Proof (ODP) Dry Kiln motor series is specially designed for challenging dry kiln environments in the lumber industry. These motors feature an upgraded insulation system, enabling them to run efficiently at higher temperatures (115° and 135°C) for faster processing and increased energy efficiency with adjustable speed drives. They are built to withstand harsh conditions, including high temperatures, humidity, and chemicals, and come with NEMA Premium® Efficiency rating, cast iron construction, H-class insulation, and IP22 protection. These motors are well-suited for softwood and hardwood dry kilns, high-temperature fans, and oven conveyors.
Specifications
Motor Voltage Phases
3 Phase
Motor Horsepower
15 HP
Motor Frame Model
324T
Motor Frequency
60 Hz
Motor Voltage
460 Volt
Motor RPM's
900 RPM
Manufacturer
Toshiba Motors
Motor Amperage (Full Load)
21.5 Amp
Motor Enclosure Type
Open Drip Proof
Features
The Motors & Drives division offers a full range of low and medium voltage motors and adjustable speed drives.
These products, hallmarked for quality, performance, and durability, can be customized to meet the most demanding applications.
