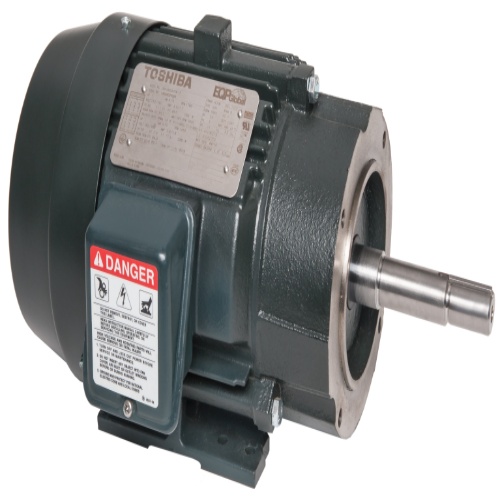

Toshiba Y756SDJR41P-P - TEFC, 3 Phase, 7.5 HP
Normally In Stock
Code: 226143
Toshiba Y756SDJR41P-P - Totally Enclosed Fan Cooled - 230 Volt, 460 Volt - 7.5 HP - 1200 RPM - 20.4 Amp, 10.2 Amp - 60 Hz - Motor Frame Model: 254JP
Condition: New
Usually ships Same Day or Next Day$2475.26
Sale Price
$2062.72
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Toshiba Y756SDJR41P-P - Toshiba's EQP Global Close-Coupled Pump motor series is purpose-built for close-coupled pumping applications, offering cost-effective ownership with a dual-frequency 50/60 Hz design, inverter-duty rating, and compatibility with various frame mounts. It features an application-specific design for horizontal or vertical mounting, corrosion-resistant paint, and IP55 ingress protection against humidity, dust, and contaminants. With low vibration levels exceeding NEMA MG1 requirements, it ensures stability and durability, reducing downtime. Designed for adjustable speed drives, it supports energy savings and offers a wide speed range. This motor is a versatile solution for global applications due to its 50/60 Hz dual-frequency rating.
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Horsepower
7.5 HP
Motor RPM's
1200 RPM
Motor Frequency
60 Hz
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Manufacturer
Toshiba Motors
Motor Amperage (Full Load)
10.2 Amp
Motor Frame Model
254JP
Motor Amperage (Full Load)
20.4 Amp
Features
The EQP Global Close-Coupled Pump motor series is
designed for close-coupled pumping applications.
The EQP Global Close-Coupled
Pump motor features multiple new design enhancements that make it one of the
lowest cost-of-ownership products in the industry.
This NEMA Premium ® design addresses global motor specifications including NEMA ® .
It offers a
dual-frequency 50/60 Hz design, is inverter-duty rated, and offers multi-mount capabilities on 140 through 365 frames.
