Code: 225454

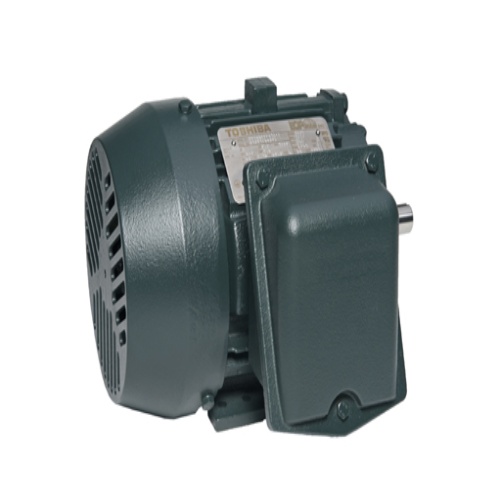

Toshiba 0038XSSC41A-P - TEFC, 3 Phase, 3 HP
Normally In Stock
Toshiba 0038XSSC41A-P - Totally Enclosed Fan Cooled - 575 Volt - 3 HP - 900 RPM - 3.7 Amp - 60 Hz - Motor Frame Model: 215T
Condition: New
Usually ships Same Day or Next Day$1938.47
Sale Price
$1615.39
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Toshiba 0038XSSC41A-P - Toshiba's EQP Global 840 motor series is designed for the mill and chemical industries, inheriting features from IEEE 841 motors. It builds upon the success of the EQPIII series with enhancements in rotor, frame, brackets, fan, and bearings. These motors offer high efficiency and reliability, meeting global market demands and EISA regulations. Key features include oversized bearings for extended lifespan, low vibration levels surpassing NEMA® standards, robust cast iron construction for stability and fewer mechanical failures, Class H insulation for improved thermal protection, C5-rated thermal materials for enhanced efficiency, high torque output, and protection against voltage spikes when used with Adjustable Speed Drives (ASDs).
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Horsepower
3 HP
Motor Frame Model
215T
Motor Voltage
575 Volt
Motor Frequency
60 Hz
Motor RPM's
900 RPM
Manufacturer
Toshiba Motors
Motor Amperage (Full Load)
3.7 Amp
Features
The Toshiba Q9 Plus
adjustable speed drive is a revolution in pump control.
By incorporating
Toshiba’s proprietary, ground-breaking Virtual Linear Pump
(VLP) Technology ® , the Q9 Plus directly, precisely, and linearly
controls pressure, level, or flow.
This eliminates many obstacles users
thought were an integral part of pump control and sets a new standard in
ingenuity, performance, and ease-of-use for the
pump industry.
