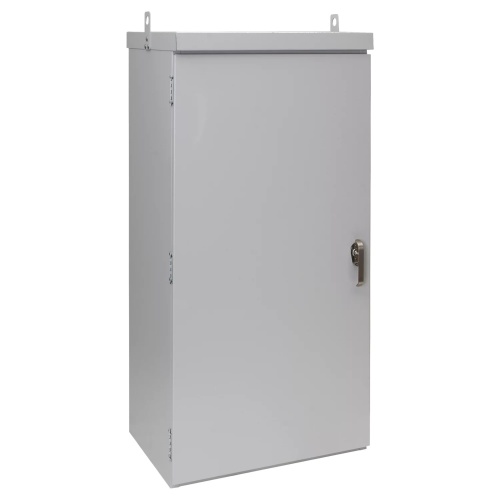

nVent Hoffman A72R7224FSLP Weatherpro Steel Enclosure
Normally In Stock
Code: 2251
nVent Hoffman A72R7224FSLP Enclosure Steel 72 x 72 x 24 inch (HxWxD) WEATHERPRO Type 3R Steel Enclosure with hinged doors and 3-point latching system with heavy duty padlockable handle includes padlocking provisions. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$4693.55
Sale Price
$3911.29
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman A72R7224FSLP Weatherpro Steel Enclosure WeatherPro Outdoor Free-Stand Enclosure Type 3R Pad Mount, protect controls, power distribution components, drives, or contactors in outdoor control, commercial or industrial power and distribution applications. Hinged door with 3-point latching system and heavy duty handle which includes padlocking provisions. Drip edge overhang on top, louvered overhang with closure plate, open bottom woth pre-punched mounting hole flange, bonding provsions on doors, two door models have overlapping doors with no center post, and includes 7 gauge lifting tabs.
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Lock Type
Padlocking
Enclosure Latch Type
3-Point With Handle
Enclosure Depth
24"
Enclosure Mount Type
Free-Standing
Enclosure Composition
Painted Steel
Enclosure Number of Doors
2 Door
Enclosure Height
72"
Enclosure Width
72"
Line
WEATHERPRO
Freestanding Enclosure Base Type
Pad Mount
Enclosure Door Type
Solid
Component
Steel Enclosure
Enclosure NEMA Rating
NEMA Type 3R
Manufacturer
Hoffman
Features
Louvered overhang with a closure plate
Open bottom with pre-punched mounting hole flange
Drip edge overhang on top
Studs included for mounting optional panels on threaded bolts
Padlock provision in handle
3-point latching system with heavy duty handle
Welded body construction
Bolted hinges on doors
Bonding provision on each door
Overlapping doors with no center post on two-door models
Sturdy 7 gauge lifting tabs
Enclosures are finished with paint over plated surfaces
Downloads
Hoffman A72R7224FSLP 2D DXF CAD.zipHoffman A72R7224FSLP 3D STEP CAD.zipHoffman A72R7224FSLP CAD Drawing.zipHoffman A72R7224FSLP Declaration of Compliance.pdfHoffman A72R7224FSLP Dimension Drawing.gifHoffman A72R7224FSLP EU Certification.pdfHoffman A72R7224FSLP Large Enclosure Handling Manual.pdfHoffman A72R7224FSLP Spec Sheet.pdfHoffman A72R7224FSLP UL Certification.pdf
