Beijer 100-8243 M3928 Analog Inputs
Normally In Stock
Code: 224627

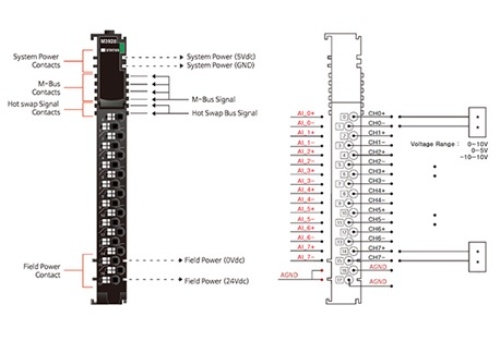

M3928 8 channels differential, 0~10/0~5/-10~10/-5~5VDC, 12 bits resolution, cage clamp, RTB18C
Condition: New
Usually ships Same Day or Next Day$583.20
Sale Price
$486.00
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
M3928 8 channels differential, 0~10/0~5/-10~10/-5~5VDC, 12 bits resolution, cage clamp, RTB18C
Specifications
Component
Analog Input
Manufacturer
Beijer
Features
Available with 8 or 16 channels, 12 or 16 Bits resolution depending on input module and signal type.
Modules support everything from input current 0~20 / 4~20 / -20~20mA, input voltage 0~5 / -5~5 / 0~10 / -10~10VDC, RTD inputs (4~20mA) sensor type PT100 / PT1000 / Ni1000LG etc. and thermocouple versions (4~20mA) for sensor types K / J / T / B / R / S / E / N / L / U / C / D . Supporting hotswap.
Conforms to multiple certificates for marine and hazardous locations making the M series suitable for tough applications
Plug in, plug out with removable terminal blocks without dismounting any wiring or shutting off power.
Enables you to take advantage of redundancies for network and power modules for mission-critical applications.
Combinations for single or redundant network module and power supply. Combined with installation friendly backplane connector and removable terminal block.
Communicate effectively with other equipment or systems via widely used industrial communication protocols.
Simply advance to CODESYS control by replacing the network adapter with a CODESYS controller module.
