Available with 8 or 16 channels, 12 or 16 Bits resolution depending on input module and signal type.

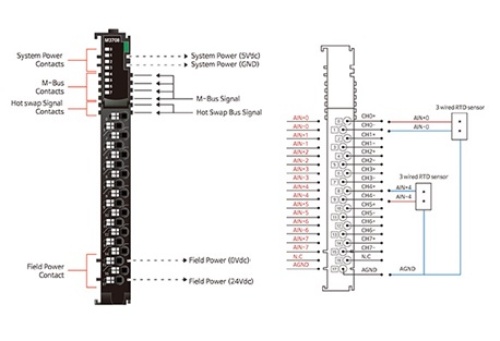

Modules support everything from input current 0~20 / 4~20 / -20~20mA, input voltage 0~5 / -5~5 / 0~10 / -10~10VDC, RTD inputs (4~20mA) sensor type PT100 / PT1000 / Ni1000LG etc. and thermocouple versions (4~20mA) for sensor types K / J / T / B / R / S / E / N / L / U / C / D . Supporting hotswap.

Conforms to multiple certificates for marine and hazardous locations making the M series suitable for tough applications

Plug in, plug out with removable terminal blocks without dismounting any wiring or shutting off power.

Enables you to take advantage of redundancies for network and power modules for mission-critical applications.

Combinations for single or redundant network module and power supply. Combined with installation friendly backplane connector and removable terminal block.

Communicate effectively with other equipment or systems via widely used industrial communication protocols.

Simply advance to CODESYS control by replacing the network adapter with a CODESYS controller module.
