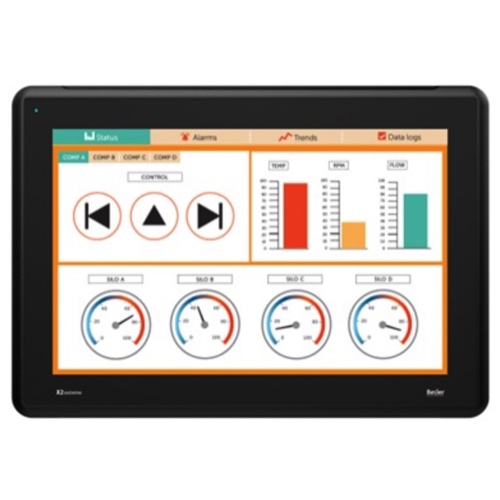

Beijer 640014605 HMI Screen X2 extreme 15
Normally In Stock
Code: 224267
Beijer 640014605 HMI Screen X2 extreme 15 HMI Screen 15" screeen, 1280x800 resolution, DOES NOT INCLUDE LICENSE KEY FOR DEVELOPER SOFTWARE i.MX6 DualLite Dual Cortex A9 CPU processor, 1 GB RAM, Color display.
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$6185.76
Sale Price
$5154.80
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Beijer 640014605 X2 extreme 15 15.4" rugged, panel-mount, graphic touch aluminum operator terminal. 1280x800 pixels, LED backlit TFT-LCD color display, 450 cd/m2 brightness, resistive touchscreen, i.MX6DualLite, Dual Cortex-A9 800MHz 512k BL2 cache CPU, 1 GB RAM, 2 GB SSD (eMMC) flash (1.5 GB free for application), 1x Ethernet, 1x 9-pin galvanically isolated physical serial port ((1) RS232, (1) RS422 / RS485 / CAN), 2x USB 2.0, 1x SD/SCHC card slot, 24 VDC power supply (18-32 VDC). Includes Web browser, PDF viewer and Windows Media Player support. -30 to 70 C operating temperature. IP66, NEMA-4x/12, UL Type 4x/12. Includes iX runtime. CE, UL/cUL Class I Div 2, ATEX (Zone 2, 22), IECEx (Ex nA IIC Gc) certifications, DNV, GL, LR, KR, CCS and ABS marine certifications. Includes iX Runtime. WEC2013 Professional. Black, Beijer-branded front.
Specifications
HMI & PC Display Color
Full Color
HMI & PC Screen Display Resolution
1280 X 800
HMI & PC Memory (RAM)
1 GB
Component
HMI Screen
HMI & PC Screen Display Size
15"
Manufacturer
Beijer
HMI & PC Processor
I.MX6 Duallite Dual Cortex A9 CPU
Features
X2 extreme HMI panels are certified by all major classification societies. Designed to perform in rugged outdoor environments and in hazardous areas where gases, vapors and dust are present. Extended environmental capabilities include operating temperatures from -30°C to +70°C, high vibrations and high-pressure wash-downs.
X2 extreme HMI panels are available in 7, 12 and 15 inches, all in 3 versions: Panel mount standard and high-performance versions, and fully sealed high-performance versions. All high-performance versions offer high brightness display and optional integrated CODESYS PLC functionality.
X2 extreme furthermore offers cost-effective, rugged only versions (RO) for applications where no marine or hazardous certifications are needed, and certified only versions (CO) including marine or hazardous certifications for applications where no rugged capabilities are needed.
X2 extreme also include a number of web HMI panels perfect for enterprises and users who wants to utilize HTML5 web technologies in industrial environments. The X2 web HMI panels enable visualization of the same content across different target platforms such as mobile, tablet, pc, etc. without any conversion or re-engineering.
