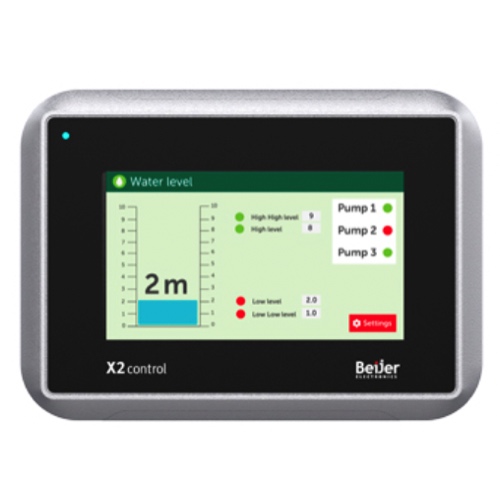

Beijer 630001705 HMI Screen X2 control 4
Normally In Stock
Code: 224246
Beijer 630001705 HMI Screen X2 control 4 HMI Screen 4" screeen, 480x282 resolution, DOES NOT INCLUDE LICENSE KEY FOR DEVELOPER SOFTWARE 1 GHz Dual Cortex A9 CPU processor, 1 GB RAM, Color display.
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$1399.44
Sale Price
$1166.20
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Beijer 630001705 X2 control 4 Graphic, resistive touch, aluminum, panel mount, operator terminal. 480x282 pixels (16:9), LED backlit 4.3" TFT-LCD color display, 300 cd/m² industrial dimmable, 1 GHz dual Cortex-A9 CPU, 1 GB NVRAM, 2 GB MLC NAND flash, 2x Ethernet, 1x3 serial ports, 1x USB 2.0, 1x SD, 24 VDC power supply, -10 to 60 C operating temperature, IP66, CE, FCC, KCC, NEMA 4x/12, UL Type 4x/12 approvals plus DNV, KR, GL, LR, ABS, CCS marine approvals. Includes iX Runtime and Codesys runtime EtherCAT/ModbusTCP & RTU. WEC2013 Entry. Beijer-branded.
Specifications
HMI & PC Display Color
Full Color
HMI & PC Memory (RAM)
1 GB
Component
HMI Screen
HMI & PC Screen Display Size
4"
Manufacturer
Beijer
HMI & PC Processor
1 Ghz Dual Cortex A9 CPU
HMI & PC Screen Display Resolution
480 X 282
Features
X2 control HMI panels combine industrial HMI and CODESYS PLC functionality in the same compact hardware.
Panels range from ultra-compact 4-inch to 15-inch panels designed for demanding applications.
Add standard distributed I/Os and you'll get an elegant, scalable and cost-effective solution that's cutting-edge.
Applications remain elegantly slim with integrated control in the HMI panel. Add remote I/Os to fit your needs, and select between three major fieldbuses – EtherCAT, Modbus RTU and Modbus TCP.
Two separate PLC and HMI systems mean twice the risk of error. X2 control panel changes all that. Simply configure your system with WARP and you're done. It’s never been easier to create applications.
X2 control HMI panels support I/O communication with super-fast EtherCAT as standard.
X2 control HMI panels have two built-in Ethernet ports as standard for communication with other equipment.
