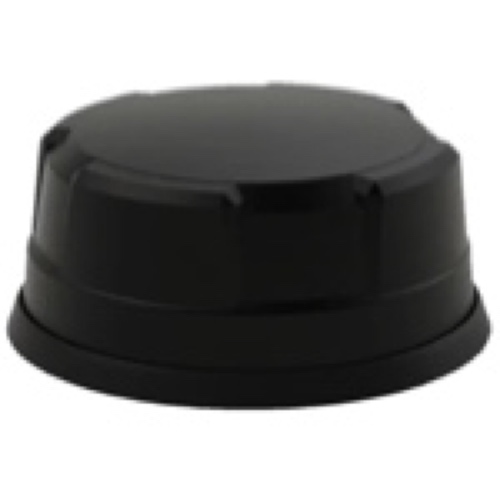

Semtech 6001344 Antenna
Normally In Stock
Code: 224036
Semtech Wireless 6001344 8in1 Dome Antenna - 4x5G/4G, GNSS, 3xWi-Fi, 2.4/5GHz, Bolt Mount, 5m, Black
Condition: New
Usually ships Same Day or Next Day$431.12
Sale Price
$359.27
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Semtech Antenna 6001344 8in1 Dome Antenna - 4x5G/4G, GNSS, 3xWi-Fi, 2.4/5GHz, Bolt Mount, 5m, Black
Specifications
Color
Black
Component
Antenna
Sub Component
Cellular
Antenna Frequency
4 X 5G/LTE 617-6000Mhz (Mimo)
GNSS
GNSS
Supported Networks
CBRS
Supported Networks
Firstnet
Supported Networks
5G NR
WiFi
3 X Wi-Fi 2.4/5Ghz
Compatible With
MG90 4×4
Antenna Cable Length
16.4'
Manufacturer
Semtech
Features
The Dome Antennas are high performance, rugged, ground plane independent MiMo antennas. They have low profile design that contains up to ten isolated high performance antenna elements in a single housing for optimal coverage—four ultra-wideband elements spanning 617-6000MHz support MiMo/ diversity at LTE/5G frequencies
a high performance GNSS antenna with an integrated 26dB gain LNA, and up to five dualband 2.4/5GHz Wi-Fi elements that provide reliable MiMo Wi-Fi connectivity.
The Dome antennas are ideal for heavy-duty public safety, transit and industrial installations, with a simple single bolt mounting
