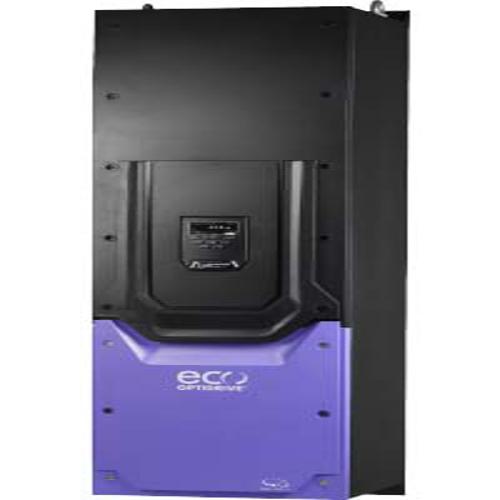

Invertek ODV-3-742400-3F1N-MN Optidrive Eco - 480 Volt, 200 HP
Normally In Stock
Code: 223815
Invertek ODV-3-742400-3F1N-MN - 480 Volt - 240 Amp - 200 HP - Frame Size: 7 *We recommend adding a reactor to mitigate harmonics and protect the drive from surges.
Condition: New
CALL FOR LEAD TIME$12991.68
Sale Price
$10826.40
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Invertek ODV-3-742400-3F1N-MN - Optidrive Eco is a compact Variable Frequency Drive (VFD) designed for pumping and HVAC systems. It supports BTL, BAC Net, and Modbus RTU communication protocols. With sensorless vector control, it can handle various motor types. The drive offers multiple pump control features, including Optiflow for multi-pump systems and in-built PID controller for precise regulation. It comes in IP55 enclosures, ensuring dust-tightness and washdown readiness. Optidrive Eco provides efficient control for pumping and HVAC applications, optimizing performance and enabling building automation.
Specifications
VFD Amperage Output
240 Amp
VFD Horsepower Output
200 HP
Manufacturer
Invertek
VFD Input Voltage
480 Volt Three Phase
VFD Output Voltage
480 Volt Three Phase
VFD EMC Filter
C3
VFD Frame Type
7
VFD KW Output
132 KW
VFD NEMA-IP Rating
NEMA 12
VFD Line
ODV-3
VFD NEMA-IP Rating
IP55
VFD Control Panel
TFT
Features

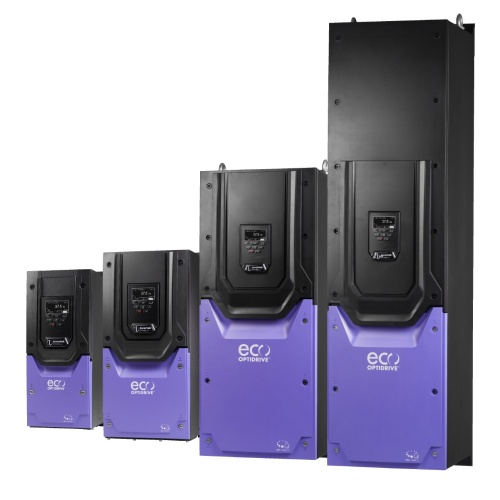

A range of compact AC Variable Frequency Drives dedicated to pumping and HVAC systems.
IP55 Enclosures: Dust-tight and ready to washdown.
In-built PID Controller: Accurately maintain pressure or temperature setpoint.
Control Modes: Sensorless Vector Speed Control: PM Vector Control, BLDC Control, Synchronous Reluctance
Sensorless Vector Control for all Motor Types: Induction Motors (IM), Permanent Magnet Motors (PM), Brushless DC Motors (BLDC), Synchronous Reluctance Motors (SynRM), Line Start PM Motor (LSPM)
Downloads
Eco IP20 Size 2.zipEco IP20 Size 3.zipEco IP20 Size 4.zipEco IP20 Size 5.zipEco IP20 Size 6A.zipEco IP20 Size 6B.zipEco IP20 Size 8.zipECO IP55 Size 4.zipECO IP55 Size 5.zipECO IP55 Size 6.zipECO IP55 Size 7.zipECO IP55 Size 8.zipECO IP66 Outdoor Size 2.zipECO IP66 Outdoor Size 3.zipECO IP66 Outdoor Size 4.zipOptidrive Eco User Guide.pdfSize 8 IP55 Gland Box Assembly Instructions.pdf
