Code: 2237

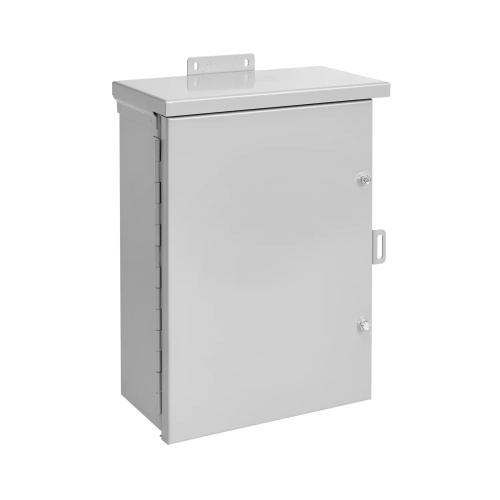

nVent Hoffman A48R3612HCR Steel Enclosure Junction Box
nVent Hoffman A48R3612HCR Enclosure Steel 48 x 36 x 12 inch (HxWxD) Type 3R Steel Enclosure with plated steel continuous hinge and Cover fastened securely with captive plated steel screws. Hasp and staple provided for padlocking. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$1863.82
Sale Price
$1553.18
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman A48R3612HCR Enclosure Steel 48 x 36 x 12 inch (HxWxD) This nVent Hoffman steel enclosure junction box has all of the aspects to provide it from rain, sleet, snow, or dripping water, making it perfect for any project with unpredictable weather elements. With it's drip shield top, seamless sides, it has front and back protection from all types elements. It also has a cover securely fastened, collar studs for optional panels to be mounted, and a hasp and staple for padlocking, making it functional in any situation.
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Depth
12"
Enclosure Lock Type
Padlocking
Enclosure Hinge Type
Continuous Hinge
Enclosure Latch Type
Screw Lift-Off
Enclosure Composition
Painted Steel
Enclosure Width
36"
Enclosure Height
48"
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 3R
Manufacturer
Hoffman
Features
Hasp and staple provided for padlocking
Cover fastened securely with captive plated steel screws
Collar studs provided for mounting optional panels
No gasketing or knockouts
16-gauge plated steel continuous hinge has stainless steel pin
Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
Enclosures are finished with paint over plated surfaces
Downloads
Hoffman A48R3612HCR 2D DXF CAD.zipHoffman A48R3612HCR 3D STEP CAD.zipHoffman A48R3612HCR CAD Drawing.zipHoffman A48R3612HCR Declaration of Compliance.pdfHoffman A48R3612HCR Dimension Drawing.gifHoffman A48R3612HCR EU Certification.pdfHoffman A48R3612HCR Instruction Manual.pdfHoffman A48R3612HCR Repainting Instructions.pdfHoffman A48R3612HCR Spec Sheet.pdfHoffman A48R3612HCR UL Certification.pdfHoffman A48R3612HCR User Manual.pdf
