Code: 223664

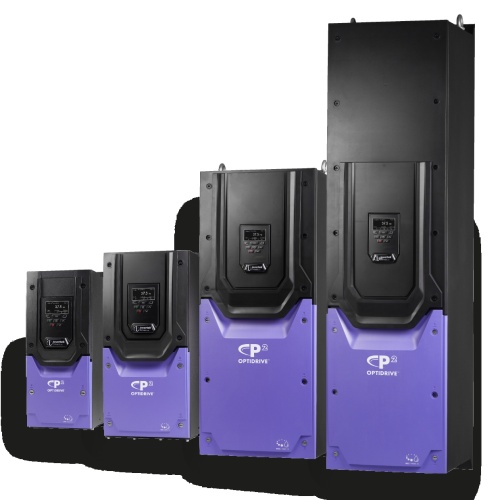

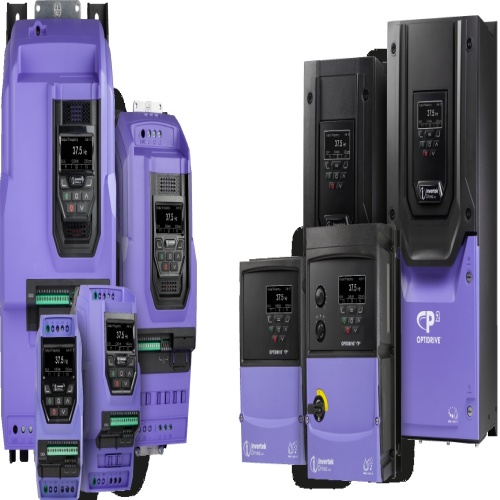

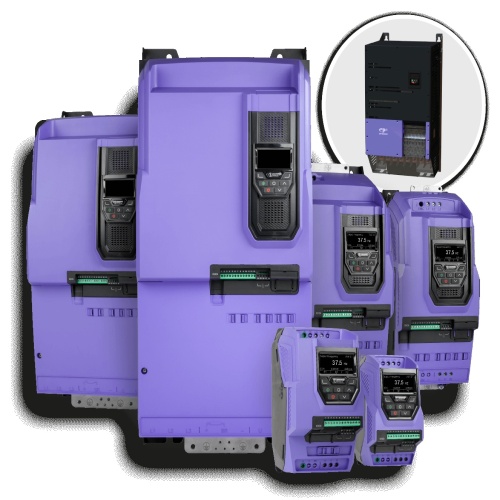

Invertek ODP-2-64120-3HF4N-MN Optidrive P2 - 480 Volt, 120 HP
Normally In Stock
Invertek ODP-2-64120-3HF4N-MN - 480 Volt - 150 Amp - 120 HP - Frame Size: 6 *We recommend adding a reactor to mitigate harmonics and protect the drive from surges.
Condition: New
CALL FOR LEAD TIME$7941.31
Sale Price
$6617.76
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Invertek ODP-2-64120-3HF4N-MN - Optidrive P2 is a high-performance variable frequency drive known for its flexibility and usability. It offers 150% overload for 60 seconds and 200% overload for 4 seconds, making it ideal for industrial heavy-duty applications. The drive supports sensorless vector control for all motor types and allows PM motor control for future-proofing. It includes built-in Modbus RTU and CAN communication, an integral EMC filter, and an integral brake transistor. With options for external accessories and software, installation flexibility, and enclosure choices (IP20, IP55, IP66/NEMA 4X), Optidrive P2 provides reliable and efficient motor control solutions.
Specifications
VFD Amperage Output
150 Amp
Manufacturer
Invertek
VFD Input Voltage
480 Volt Three Phase
VFD Output Voltage
480 Volt Three Phase
VFD Horsepower Output
120 HP
VFD KW Output
75 KW
VFD Frame Type
6
VFD EMC Filter
C3
VFD NEMA-IP Rating
NEMA 12
VFD NEMA-IP Rating
IP55
VFD Line
ODP-2
VFD Control Panel
TFT
Features
High performance, variable frequency, excellent usability and flexible to meet the needs of your application.
Sensorless Vector Control: Up to 200% torque from zero speed ensures reliable starting and accurate speed control under all load conditions.
PM Motor Control: Future proof. Allows upgrade to the latest generation of high efficiency permanent magnet motors.
Built-in EMC Filter: An internal filter in every Optidrive P2 saves cost and time for installation.
Integral Brake Transistor: Saves space, cost and time for installation.
Downloads
Optidrive P2 User Guide.pdfP2 IP20 Size 2.zipP2 IP20 Size 3.zipP2 IP20 Size 4.zipP2 IP20 Size 5.zipP2 IP20 Size 6A.zipP2 IP20 Size 6B.zipP2 IP20 Size 8.zipP2 IP55 Size 4.zipP2 IP55 Size 5.zipP2 IP55 Size 6.zipP2 IP55 Size 7.zipP2 IP55 Size 8.zipP2 IP66 Outdoor Size 2.zipP2 IP66 Outdoor Size 3.zipP2 IP66 Outdoor Size 4.zipSize 8 IP55 Gland Box Assembly Instructions.pdf
