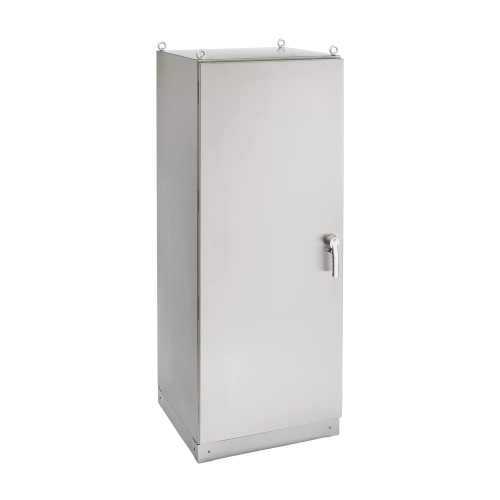

nVent Hoffman FS181054SHP0 FS66S Global Stainless Steel Enclosure
Normally In Stock
Code: 22357
nVent Hoffman FS181054SHP0 FS66S Global Enclosure Stainless Steel 73.97 x 40.06 x 19.11 inch (HxWxD) Type 4X 304 Stainless Steel (12 gauge) 1 Door Single Access Free-Stand(Floor Mount) Enclosure with removable hinges. Heavy-duty three-point latching mechanism operated by Type 316L stainless steel POWERGLIDE padlocking handle. Internal grid mounting system with PROLINE frame compatibility. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$19507.20
Sale Price
$16256.00
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman FS181054SHP0 FS66S Global Stainless Steel Enclosure This single-door enclosure provides industry-leading protection for systems incorporating large components or complex mounting configurations in highly corrosive environments. The addition of 19-in. rack-mounting accessories makes these enclosures ideal for providing rugged protection for sensitive rack-mounted components in harsh industrial environments. The enclosure is typically used in food-processing plants, pharmaceutical manufacturing facilities, petrochemical plants and waste-water treatment facilities.
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Lock Type
Padlocking
Enclosure Mount Type
Free-Standing
Enclosure Composition
304 Stainless Steel
Enclosure Depth
19.11"
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Height
74"
Enclosure Width
40"
Enclosure Door Type
Solid
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 3R
Enclosure NEMA Rating
NEMA Type 12
Component
Stainless Steel Enclosure
Manufacturer
Hoffman
Features
Heavy-duty stainless steel lifting eyes
Uni-body design with seams continuously welded and ground smooth
Two-door enclosures provided with a removable center-post for easy panel installation
Heavy-duty three-point latching mechanism operated by 316L stainless steel PowerGlide padlocking handle
Enclosure with contents to support Standard duty 500Kg (1102 lb.) evenly distributed and Heavy duty 1000Kg (2205 lb.) evenly distributed
Internal grid mounting system and ProLine frame compatible for easy and fast panel installation
Seamless foam-in-place gasket assures a water-tight and dust-tight seal
Gland plate on the bottom offers cable entry options
Built-in plinth base that allows for flexible cable entry
Removable hidden hinges
Body flange trough collar channels liquids and contaminants away from door opening and installed equipment
Painted or galvanized back panels can be rear-mounted in single-access enclosures and back-to-back in dual access enclosures
Bonding provision on door
Three-point latching and sealing provide industry-leading protection from dust, oil and water
Downloads
Hoffman FS181054SHP0 2D DXF CAD.zipHoffman FS181054SHP0 3D STEP CAD.zipHoffman FS181054SHP0 Declaration of Compliance.pdfHoffman FS181054SHP0 Dimension Drawing.pdfHoffman FS181054SHP0 EU Certification.pdfHoffman FS181054SHP0 Large Enclosure Handling Instructions CODE.pdfHoffman FS181054SHP0 Large Enclosure Handling Manual.pdfHoffman FS181054SHP0 Spec Sheet.pdfHoffman FS181054SHP0 UL Certification.pdf
