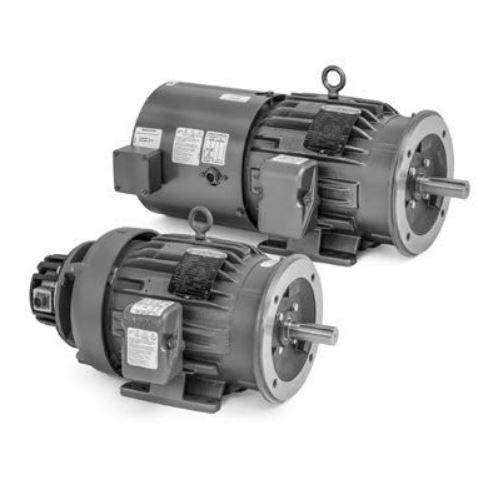

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

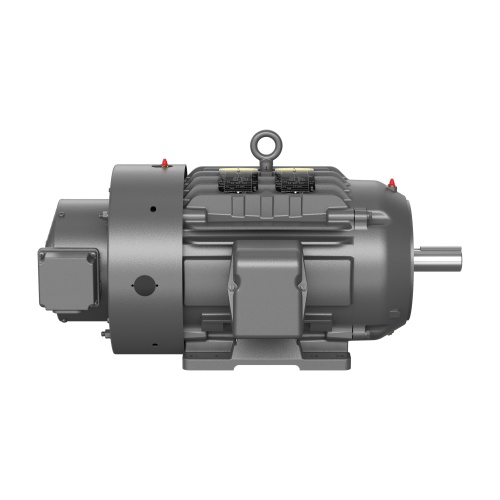

Baldor ZDM2334T 60M 4P Totally Enclosed Blower Cooled HOR 256TC T'STATS VECTOR DR
Normally In Stock
Code: 222448
Baldor ZDM2334T 3 460.0 V @ 60 HZ
230.0 V @ 60 HZ 20 HP @ 60 HZ Totally Enclosed Blower Cooled
Condition: New
CALL FOR LEAD TIME$8944.03
Sale Price
$7453.36
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor ZDM2334T 3 460.0 V @ 60 HZ
230.0 V @ 60 HZ 20 HP @ 60 HZ 1770 RPM,1800 RPM @ 60 HZ 24 A @ 460.0 V
48 A @ 230.0 V
52 A @ 208.0 V 60.00 Hz Iron Totally Enclosed Blower Cooled
Specifications
Motor Voltage Phases
3 Phase
Motor Frame Model
256TC
Motor Horsepower
20 HP
Motor Frequency
60 Hz
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor RPM's
1800 RPM
Motor Amperage (Full Load)
24 Amp
Motor Amperage (Full Load)
48 Amp
Motor NEMA Design
NEMA Design J
Motor Insulation Class
Class H Insulation
Motor Enclosure Type
Totally Enclosed Blower Cooled
Motor Amperage (Full Load)
52 Amp
Manufacturer
Baldor-Reliance
Motor Construction
Iron
Features
1/3 – 500 Hp (0.25 – 373 kW)
Severe duty vector: 1 – 50 Hp (0.75 – 37.3 kW)
Standard NEMA frame 56 to 449T (IEC available)
Small ratings offered in TENV enclosures
Larger ratings offered in TEFC and TEBC enclosures
900, 1200 and 1800 RPM standard base speeds
Provisions for encode mounting
200% overload torque for 1 min at base speeds
Constant horsepower operation to 1.5x base speed
Class F or H insulation for extended motor life
Exceeds NEMA MG1 Part 31 requirements
Division 2 CSA certified
Corona-free insulation
3 thermostats, one per phase
