Code: 222318

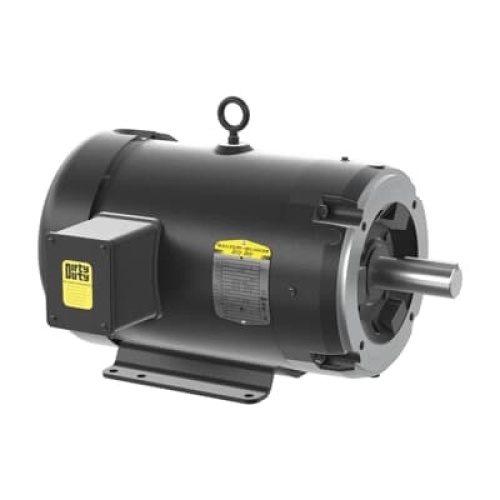

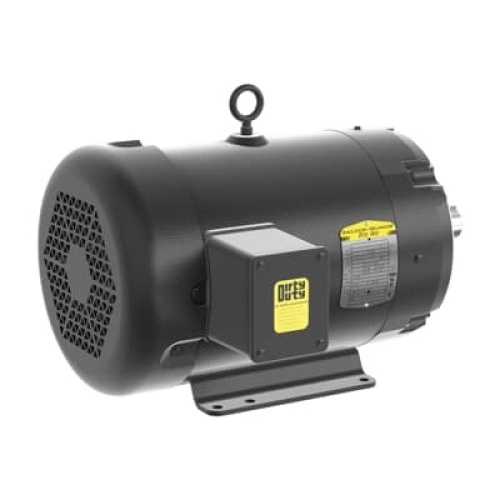

Baldor CEDM3709T 7.5HP, 3520RPM, 3PH, 60HZ, 213TC, 3728M, Totally Enclosed Fan Cooled
Normally In Stock
Baldor CEDM3709T 3 460.0 V @ 60 HZ
230.0 V @ 60 HZ 7.500 HP @ 60 HZ Totally Enclosed Fan Cooled
Condition: New
CALL FOR LEAD TIME$3139.04
Sale Price
$2615.87
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Baldor CEDM3709T 3 460.0 V @ 60 HZ
230.0 V @ 60 HZ 7.500 HP @ 60 HZ 3520 RPM,3600 RPM @ 60 HZ 18 A @ 230.0 V
19 A @ 208.0 V
9 A @ 460.0 V 60.00 Hz Steel Totally Enclosed Fan Cooled
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
7.5 HP
Motor Frame Model
213TC
Motor Frequency
60 Hz
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor RPM's
3600 RPM
Motor Amperage (Full Load)
19 Amp
Motor Amperage (Full Load)
18 Amp
Motor Amperage (Full Load)
9 Amp
Motor NEMA Design
NEMA Design J
Manufacturer
Baldor-Reliance
Motor Construction
Steel
Features
Built for highly corrosive environments
Safety is our #1 priority with safe installation, connection, and operation, making our motors among the most reliable in the industry
Suitable for inverter use per NEMA MG1 Part 31.4.4.2
Permanently lubricated, double-sealed ball bearings for ease of maintenance
Cast iron endplates and conduit box with robust rolled steel enclosure
