Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

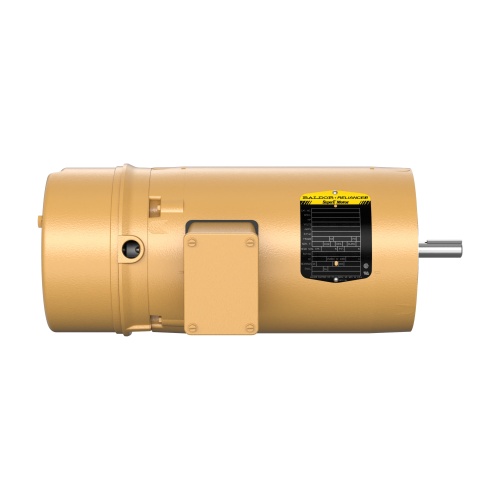

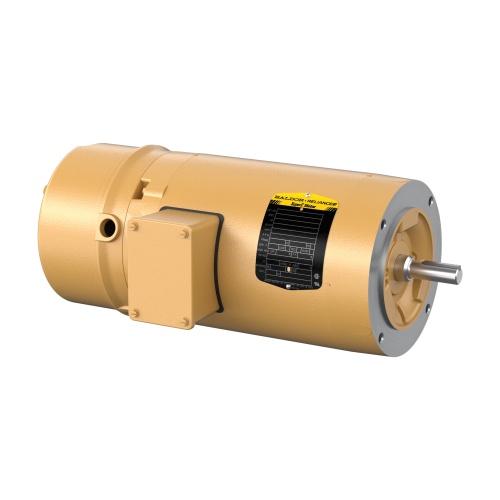

Baldor VEBNM3538 .5HP, 1765RPM, 3PH, 60HZ, 56C, 3516M, Totally Enclosed Non-Vented, F1
Normally In Stock
Code: 221954
Baldor VEBNM3538 3 460.0 V @ 60 HZ
230.0 V @ 60 HZ .500 HP @ 60 HZ Totally Enclosed Non-Vented
Condition: New
CALL FOR LEAD TIME$2188.26
Sale Price
$1823.55
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor VEBNM3538 3 460.0 V @ 60 HZ
230.0 V @ 60 HZ .500 HP @ 60 HZ 1765 RPM,1800 RPM @ 60 HZ .900 A @ 460.0 V
1.800 A @ 230.0 V
1.900 A @ 208.0 V 60.00 Hz Steel Totally Enclosed Non-Vented
Specifications
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Frequency
60 Hz
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor RPM's
1800 RPM
Motor Frame Model
56C
Motor Horsepower
0.5 HP
Motor NEMA Design
NEMA Design N
Motor Enclosure Type
Totally Enclosed Non-Vented
Manufacturer
Baldor-Reliance
Motor Construction
Steel
Features
Standard NEMA BA dimension
(C-Face may be added in ModExpress to EBM motors for C-Face with base)
Spring-set brake
Power off manual release
Resets automatically
Class F insulated with 1.15 service factor
Motors have NEMA Premium® Efficiency and are suitable for inverter use
230/460V brakes are connected in conduit box allowing for separate connection when used with an inverter.
Code: 221954
Baldor VEBNM3538 .5HP, 1765RPM, 3PH, 60HZ, 56C, 3516M, Totally Enclosed Non-Vented, F1
$2188.26
Sale Price
$1823.55
