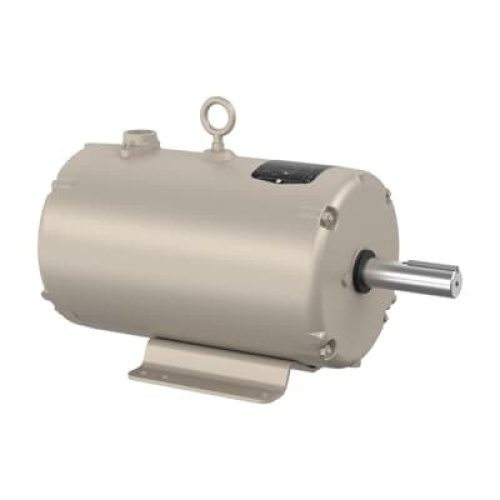

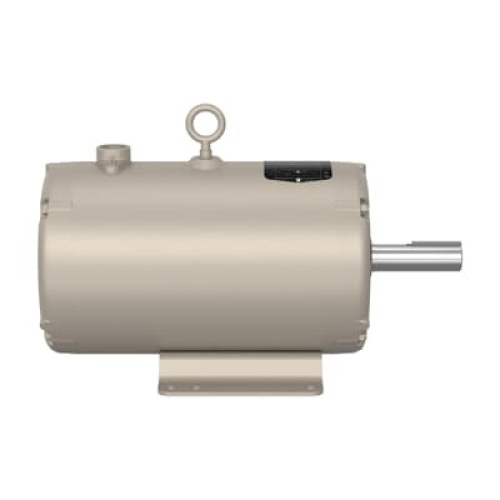

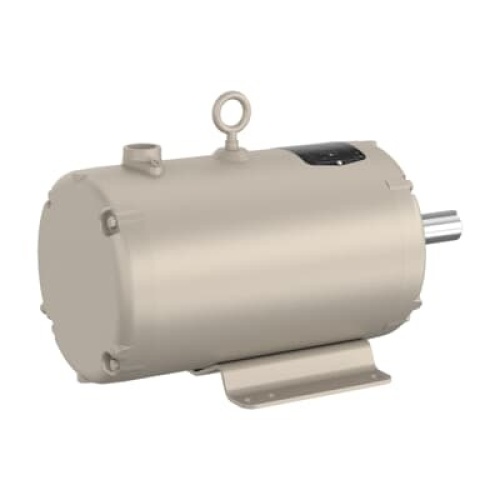

Baldor UCME570 5-7.5 AIR OVERHP, 3450RPM, 3PH, 60HZ, 184TZ
Normally In Stock
Code: 221615
Baldor UCME570 3 230.0 V @ 60 HZ
460.0 V @ 60 HZ 7.500 HP @ 60 HZ
5 HP @ 60 HZ Totally Enclosed Air Over
Condition: New
CALL FOR LEAD TIME$1535.76
Sale Price
$1279.80
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor UCME570 3 230.0 V @ 60 HZ
460.0 V @ 60 HZ 7.500 HP @ 60 HZ
5 HP @ 60 HZ 3450 RPM,3600 RPM @ 60 HZ 18 A @ 230.0 V
19 A @ 208.0 V
9 A @ 460.0 V 60.00 Hz Steel Totally Enclosed Air Over
Specifications
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
5 HP
Motor Horsepower
7.5 HP
Motor Frequency
60 Hz
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor RPM's
3600 RPM
Motor Amperage (Full Load)
19 Amp
Motor Amperage (Full Load)
18 Amp
Motor Amperage (Full Load)
9 Amp
Motor NEMA Design
NEMA Design K
Motor Enclosure Type
Totally Enclosed Air Over
Motor Frame Model
184TZ
Manufacturer
Baldor-Reliance
Motor Construction
Steel
Code: 221615
Baldor UCME570 5-7.5 AIR OVERHP, 3450RPM, 3PH, 60HZ, 184TZ
$1535.76
Sale Price
$1279.80
