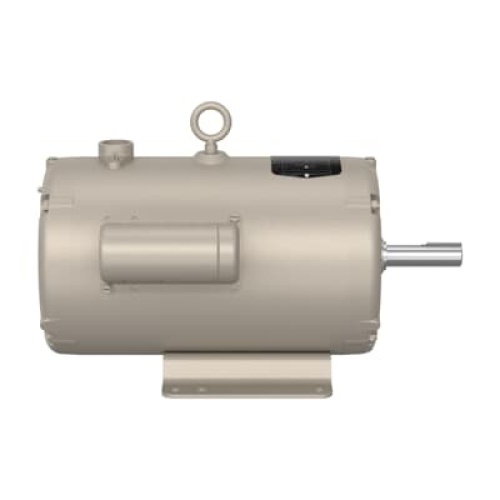

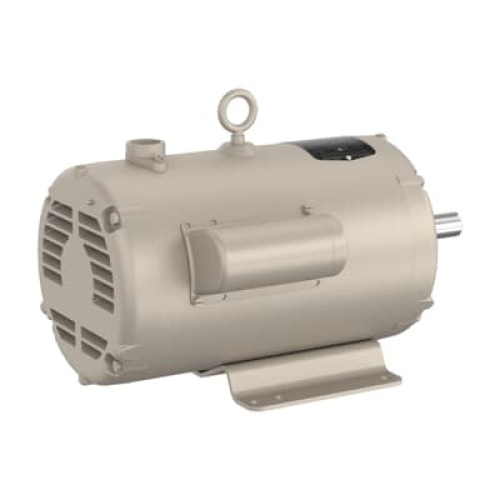

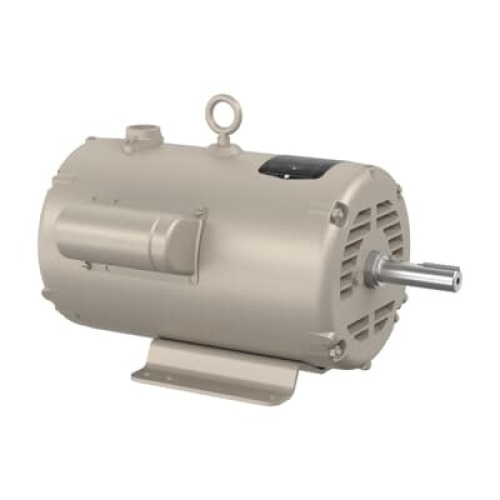

Baldor UCL345 3-4.5HP, 3450RPM, 1PH, 60HZ, 182Z, 3634L, OPEN
Normally In Stock
Code: 221600
Baldor UCL345 1 230.0 V @ 60 HZ 4.500 HP @ 60 HZ
3 HP @ 60 HZ OPEN
Condition: New
CALL FOR LEAD TIME$1685.27
Sale Price
$1404.39
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor UCL345 1 230.0 V @ 60 HZ 4.500 HP @ 60 HZ
3 HP @ 60 HZ 3450 RPM,3600 RPM @ 60 HZ 22 A @ 230.0 V 60.00 Hz Steel OPEN
Specifications
Motor Insulation Class
Class F Insulation
Motor Horsepower
3 HP
Motor Frequency
60 Hz
Motor Voltage
230 Volt
Motor RPM's
3600 RPM
Motor Voltage Phases
1 Phase
Motor Amperage (Full Load)
22 Amp
Motor NEMA Design
NEMA Design F
Motor Enclosure Type
Open
Motor Horsepower
4.5 HP
Motor Frame Model
182Z
Manufacturer
Baldor-Reliance
Motor Construction
Steel
