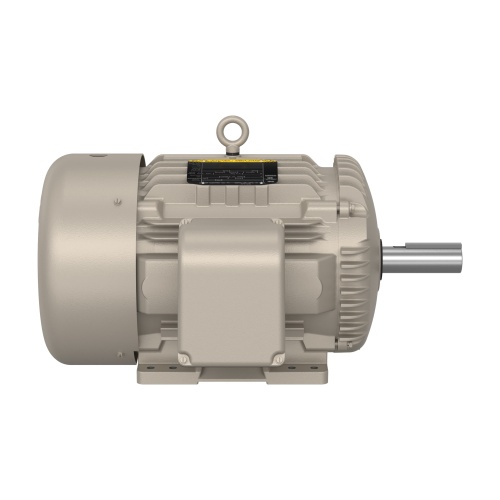

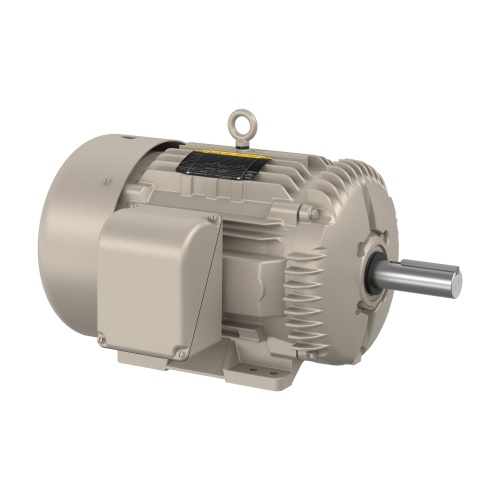

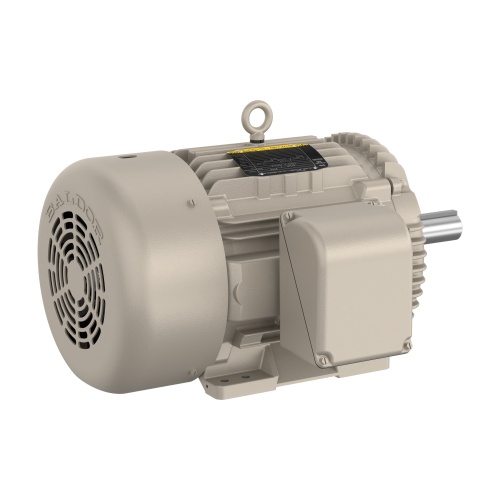

Baldor EGDM4104T 30HP, 1760RPM, 3PH, 60HZ, 286TZ, 1056M, Totally Enclosed Fan Cooled, F
Normally In Stock
Code: 221588
Baldor EGDM4104T 3 460.0 V @ 60 HZ
230.0 V @ 60 HZ 30 HP @ 60 HZ Totally Enclosed Fan Cooled
Condition: New
CALL FOR LEAD TIME$8092.21
Sale Price
$6743.51
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor EGDM4104T 3 460.0 V @ 60 HZ
230.0 V @ 60 HZ 30 HP @ 60 HZ 1760 RPM,1800 RPM @ 60 HZ 38 A @ 460.0 V
76 A @ 230.0 V
78 A @ 208.0 V 60.00 Hz Iron Totally Enclosed Fan Cooled
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
30 HP
Motor Frequency
60 Hz
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor RPM's
1800 RPM
Motor Amperage (Full Load)
76 Amp
Motor NEMA Design
NEMA Design J
Motor Frame Model
286TZ
Motor Amperage (Full Load)
38 Amp
Motor Amperage (Full Load)
78 Amp
Manufacturer
Baldor-Reliance
Motor Construction
Iron
Features
Sealed bearings ensure that the proper grease is utilized for the life of the motor and reducing the risk of bearing failure.
Sealing solutions reduce contaminants and mitigate the risk of motor and winding failures. Suitable for humid or wet environments (e.g. barns, irrigation systems)
Protects winding from overheating during overload, and prevents automatic restarts which require operator intervention.
Offer a wide variety of enclosure construction from industrial steel band open designs used in relatively clean environments
to totally enclosed cast iron designs where exposure to water, dust, and corrosives exists.
Baldor-Reliance and ABB NEMA Motors are engineered with safety and performance in mind.
Farming is not a one-size-fits-all operation, and neither are the motors that power it. That’s why Baldor-Reliance Farm Duty Motors are designed with feature- and application-specific solutions to meet the unique demands of agricultural work.
