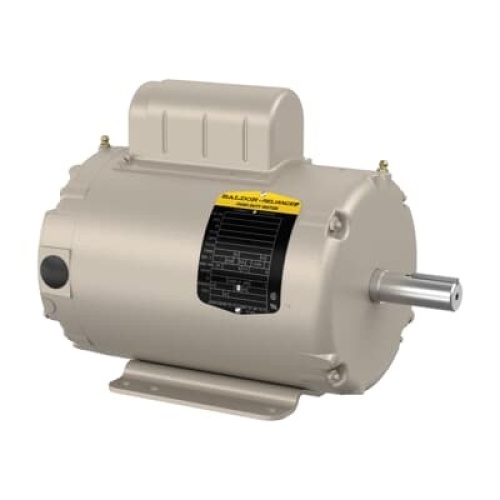

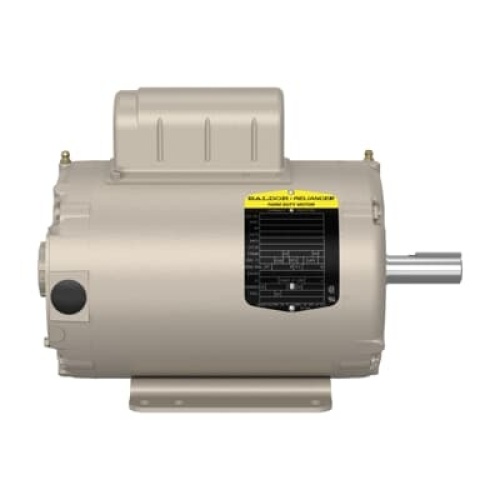

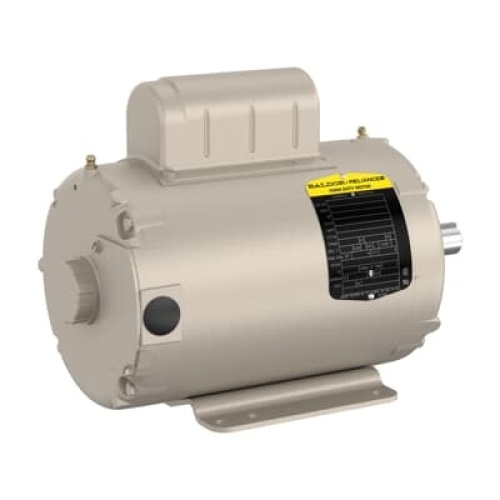

Baldor AFL3522A 1.5HP, 3450RPM, 1PH, 60HZ, 143TZ, 3528L, Totally Enclosed Air Over
Normally In Stock
Code: 221536
Baldor AFL3522A 1 115.0 V @ 60 HZ
230.0 V @ 60 HZ 1.500 HP @ 60 HZ Totally Enclosed Air Over
Condition: New
CALL FOR LEAD TIME$1010.41
Sale Price
$842.01
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor AFL3522A 1 115.0 V @ 60 HZ
230.0 V @ 60 HZ 1.500 HP @ 60 HZ 3450 RPM,3600 RPM @ 60 HZ 16.600 A @ 115.0 V
8.300 A @ 230.0 V
8.600 A @ 208.0 V 60.00 Hz Steel Totally Enclosed Air Over
Specifications
Motor Horsepower
1.5 HP
Motor Frequency
60 Hz
Motor Voltage
230 Volt
Motor RPM's
3600 RPM
Motor Voltage
115 Volt
Motor Voltage Phases
1 Phase
Motor Amperage (Full Load)
8.3 Amp
Motor NEMA Design
NEMA Design H
Motor Insulation Class
Class B Insulation
Motor Enclosure Type
Totally Enclosed Air Over
Motor Frame Model
143TZ
Motor Amperage (Full Load)
16.6 Amp
Motor Amperage (Full Load)
8.6 Amp
Manufacturer
Baldor-Reliance
Motor Construction
Steel
Features
Engineered specifically for aeration fans in grain storage. Features a 1/4-20 tapped and keyed shaft as standard, with a TEAO enclosure that uses airflow from the fan to provide cooling
Automatic thermal overload protection. Overload protectors ensure the motor shuts down safely if it’s pushed beyond its limits
Designed to run continuously for long periods without overheating, which is essential for grain drying or cooling that may last for days or weeks
Lubed for life double-shielded ball bearings to extend motor life and reduce maintenance needs
Terminal panel for ease of connectivity
Features a heavy-gauge steel frame with a farm-duty epoxy paint finish, offering resistance to corrosion and harsh environmental conditions
