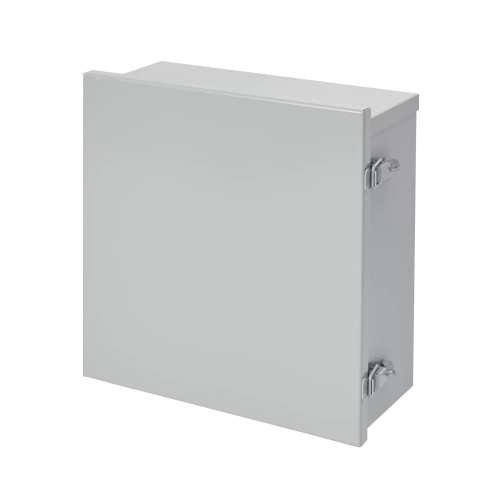

nVent Hoffman A24R208HCLO Steel Enclosure Junction Box
Normally In Stock
Code: 2215
nVent Hoffman A24R208HCLO Enclosure Steel 24 x 20 x 8 inch (HxWxD) Type 3R Steel Enclosure with Galvanized steel lift-off hinges with stainless steel pins and provisions for padlocking on each draw pull catch.. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$511.58
Sale Price
$426.32
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman A24R208HCLO Enclosure Steel 24 x 20 x 8 inch (HxWxD) This nVent Hoffman steel enclosure junction box has a drip-shield top and seamless sides, making it the perfect enclosure for all types of weather, rain, sleet, snow, or dripping water. With it's removable cover, galvanized steel lift-off hinges, and stainless steel pins, this enclosure allows for easy mounting and access. This enclosure also has embossed mounting holes, gasketing on the top of the door, and provisions for padlocking, making it perfect for many different projects.
Specifications
Enclosure Depth
8"
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Lock Type
Padlocking
Enclosure Latch Type
Pull Catch
Enclosure Composition
Painted Steel
Enclosure Width
20"
Enclosure Height
24"
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 3R
Manufacturer
Hoffman
Features
Gasketing along top of door
Provisions for padlocking on each draw pull catch
Embossed mounting holes on back of enclosure
No knockouts
Galvanized steel lift-off hinges with stainless steel pins
Drip-shield top and seam-free sides, front and back
Quick-release door latches
Enclosures are finished with paint over plated surfaces
Downloads
Hoffman A24R208HCLO 2D DXF CAD.zipHoffman A24R208HCLO 3D STEP CAD.zipHoffman A24R208HCLO CAD Drawing.zipHoffman A24R208HCLO Declaration of Compliance.pdfHoffman A24R208HCLO Dimension Drawing.gifHoffman A24R208HCLO EU Certification.pdfHoffman A24R208HCLO Instruction Manual.pdfHoffman A24R208HCLO Spec Sheet.pdfHoffman A24R208HCLO UL Certification.pdfHoffman A24R208HCLO User Manual.pdf
