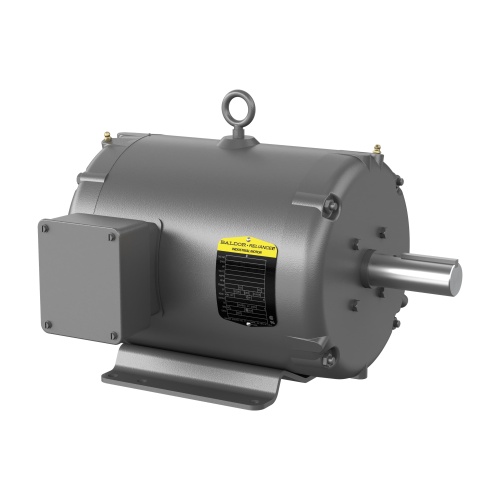

Baldor AOM3702T 2HP, 855RPM, 3PH, 60HZ, 213T, 3724M, Totally Enclosed Air Over, F1, N
Normally In Stock
Code: 221490
Baldor AOM3702T 3 208.0 V @ 60 HZ
230.0 V @ 60 HZ
460.0 V @ 60 HZ 2 HP @ 60 HZ Totally Enclosed Air Over
Condition: New
CALL FOR LEAD TIME$2806.45
Sale Price
$2338.71
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor AOM3702T 3 208.0 V @ 60 HZ
230.0 V @ 60 HZ
460.0 V @ 60 HZ 2 HP @ 60 HZ 855 RPM,900 RPM @ 60 HZ 3.500 A @ 460.0 V
7 A @ 230.0 V
7.600 A @ 208.0 V 60.00 Hz Steel Totally Enclosed Air Over
Specifications
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
2 HP
Motor Frame Model
213T
Motor Frequency
60 Hz
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor RPM's
900 RPM
Motor Amperage (Full Load)
7 Amp
Motor NEMA Design
NEMA Design H
Motor Voltage
208 Volt
Motor Enclosure Type
Totally Enclosed Air Over
Manufacturer
Baldor-Reliance
Motor Construction
Steel
Motor Amperage (Full Load)
3.500 Amp
Motor Amperage (Full Load)
7.600 Amp
Features
1/4 - 10 hp
48 – 215T NEMA frame
208-230/460, 230/460 volt
36” long leads for ease of connectivity
Oversized ball bearings for large overhung load from shaft mounted fans
Locked DE bearing to allow mounting in any configuration
IP44 (IP54 with drain fitting kit)
Designed for longevity with 3 year warranty
Code: 221490
Baldor AOM3702T 2HP, 855RPM, 3PH, 60HZ, 213T, 3724M, Totally Enclosed Air Over, F1, N
