Code: 221291

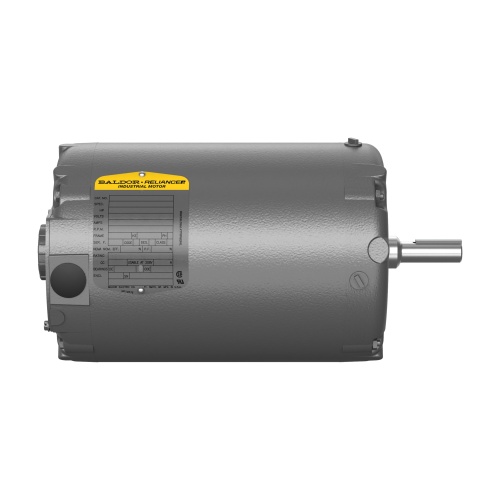

Baldor M3539-TP .5 AIR OVERHP, 1140RPM, 3PH, 60HZ, 56Z, 3516M
Normally In Stock
Baldor M3539-TP 3 208.0 V @ 60 HZ
460.0 V @ 60 HZ
230.0 V @ 60 HZ .500 HP @ 60 HZ Totally Enclosed Non-Vented
Condition: New
CALL FOR LEAD TIME$953.71
Sale Price
$794.76
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Baldor M3539-TP 3 208.0 V @ 60 HZ
460.0 V @ 60 HZ
230.0 V @ 60 HZ .500 HP @ 60 HZ 1140 RPM,1200 RPM @ 60 HZ 2.700 A @ 208.0 V
2.500 A @ 208.0 V
2.400 A @ 230.0 V
1.200 A @ 460.0 V 60.00 Hz Steel Totally Enclosed Non-Vented
Specifications
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor RPM's
1200 RPM
Motor Frequency
60 Hz
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor NEMA Design
NEMA Design L
Motor Horsepower
0.5 HP
Motor Voltage
208 Volt
Motor Enclosure Type
Totally Enclosed Non-Vented
Motor Frame Model
56Z
Manufacturer
Baldor-Reliance
Motor Construction
Steel
Motor Amperage (Full Load)
1.200 Amp
Motor Amperage (Full Load)
2.400 Amp
Motor Amperage (Full Load)
2.500 Amp
Motor Amperage (Full Load)
2.700 Amp
Features
TEAO enclosure for the listed operating environment.
Agency approvals listed: CURUS
UR
CSA.
Continuous duty rating supports sustained operation.
Rated-load efficiency: 70.0 %
Electrically Isolated Bearing
Not Electrically Isolated.
Insulation class F
Inverter Code
Not Inverter supports motor thermal durability.
Service factor 1.25 provides extra operating margin above rated load.
